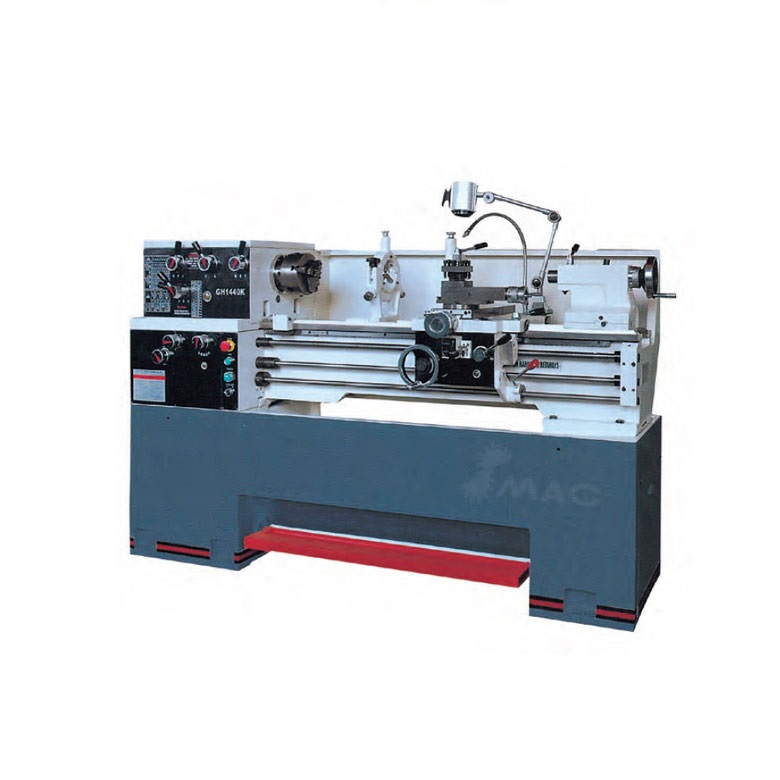

SMAC GH-1440K Engine Lathe

General capacity

Max.Swing over bed (mm): F356(14”)

Max.Swing over carriage (mm): F210(8-1/5”)

Max.Swing over gap (mm): F508(20”

Width of bed (mm): 260(10-1/5”)

Distance between centers (Two centers) (mm): 750(30”)/1000(40”)

Main spindle

Taper of spindle bore: MT-5

Diameter of spindle bore (mm): F40(1-1/2”)

Number of spindle speeds: 12

Range of spindle speeds (rpm): 0-1800

Spindle nose: D4

Threading & Feeding

Metric threads: 37kinds/(0.4-7mm)

23kinds/(0.45-7.5mm)

Whit-worth threads: 28kinds/(4-56T.P.I”)

40kinds/(4-112T.P.I”)

Range of longitudinal feeds (mm/r): 0.043-0.653(0.0012”-0.0294”)

Range of cross feeds (mm/r): 0.024-0.359(0.0004”-0.0103”)

Leadscrew

Diameter of leadscrew (mm): F22(7/8”)

Pitch threads of leadscrew: 4mm or 8T.P.I

Tailstock

Travel of tailstock quill (mm): 120(4-3/4”)

Diameter of tailstock quill(mm): F45(1-25/32”)

Taper hole of tailstock quill: MT-3

Power

Main motor power (KW): 2.4Kw(3HP),3Ph,4P,60Hz,230V

Coolant pump motor power (KW): 004Kw (0.055HP)

Overall dimemtions of lathe(LxWxH) (mm): 1900x710x1170

Packing size of lathe(LxWxH) (mm): 1900x760x1435

Net weight (Kg): 1200(2650 lbs)

Gross weight (Kg): 1300(2850 lbs)
