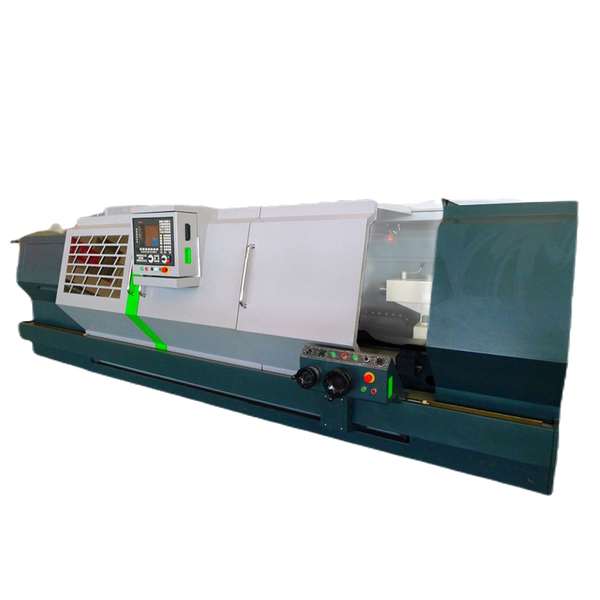

SMAC CY-K800B CNC Flat Bed Lathe

Distance between centers: 1500mm,3000mm

Swing over bed: 800mm

Swing over cross side: 520mm

Width of bed: 600mm

Spindle nose & bore: A2-11 Φ 104mm,A2-11 Φ 130mm,A2-11 Φ 104mm,A2-11 Φ 130mm

Spindle speed: 22-108, 60-300,240-1200rpm

Max. travel X/Z axis: 420/1350,2850mm

Rapid feed speed X/Z axis: 4/8m/min

Positioning accuracy X/Z axis: 0.03/0.04mm

Repeatability X/Z axis: 0.012/0.02,0.025mm

Tailstock quill diameter: 100mm

Tailstock quill max travel: 250mm

Tailstock quill taper: 250mm

Max. turning dia. for disc (V4): 800mm

Max. turning dia. for disc (H6): 760mm

Max. load (kg): 1500(1500mm),2500(3000mm)

Main motor: 15kW

Gross / Net weight (kg): 1500mm6100/5600

3000mm7600/7100

Package dimensions (mm): 1500mm4307x2040x1855

300mm 5711x2040x1855

Standard Accessories: Fanuc 0i-Mate-TD controller; Automatic 3-step gear box with inverter; Φ325 manual 3-jaw chuck; Manual

tailstock; Vertical 4-position electronic turret; Heat-exchanger; Full cover for 1500mm, 2-door half cover for 3000mm

Optional Accessories: Electronic handwheels with Teach-In function(only available with Fanuc, Fagor & Siemens); Servo, motor

drive; Φ250/Φ315 hydraulic through/solid 3-jaw chuck; Hydraulic tailstock; Horizontal 6-position electronic turret; Air conditioner;

Steady rest / Follow rest
