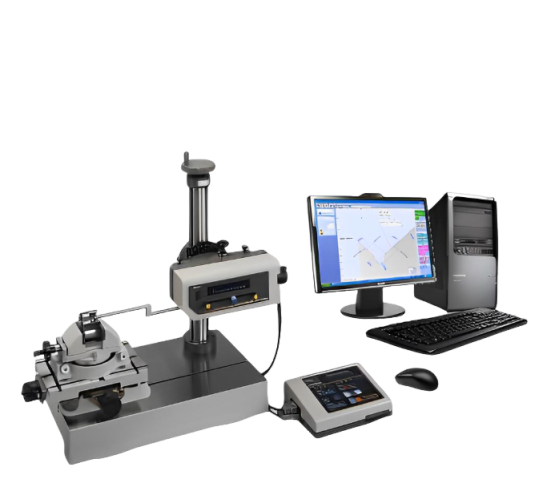

SM Metrology PGS100 Profilometer (0.2 mm/s ~ 2 mm/s, 20 μm)

Unit of measure: Millimeters and inches

Exploration stroke (X): 130 mm (5.12 in)

Measuring range (Z): 50 mm (1.97 in)

Column travel (Y): 320 mm (12.6 in), manual

Sampling interval (X): 0.5 μm (0.02 μin)

Z axis resolution: 0.2 μm (0.008 μin)

Positioning speeds: 0-10 mm/s (0-7 in/s)

Measurement speed: From 0.2 mm/s to 2 mm/s (from 0.008 in/s to 0.08 in/s)

Tip radius: 20 μm (0.8 μin)

CNC cycles: Automatic CNC measuring and positioning cycles with self-comparison of the measured profiles

Connection: USB interface to Windows PC (©)

Languages: Italian, French, English, German, Spanish, Portuguese, and Slovenian

Dimensions: 1013 × 400 × 679 mm (L × W × H)

Total weight: 34 kg (75 lbs)

Supply voltages: 110-240 V ; 50-60 Hz

Working temperatures: 15 - 25°C (59 - 77°F)

Software: Profile Studio Basic
