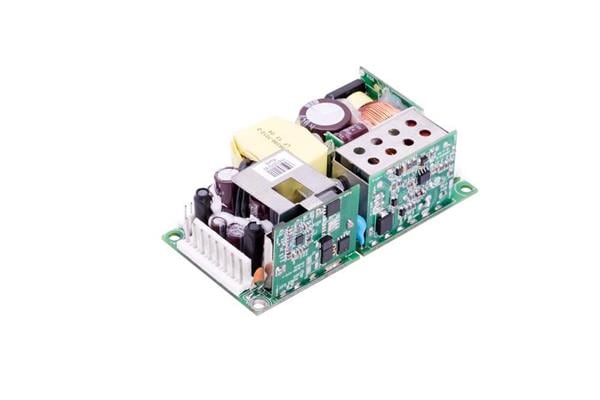

SL Power MINT3110A1908K01 Switching Power Supplies 110W 5V 12A, 24V 4A, -24V 1A 2X4 Medical

Width: 50.8 mm (2 in)

Height: 33.02 mm (1.3 in)

Length: 101.6 mm (4 in)

Industry: Medical

Approvals: EN60601-1, UL60601-1

Compliance: EN60601-1, UL60601-1

Unit Weight: 200 g

Output Power: 110 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Number of Outputs: 3 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12 A

Output Current-Channel 3: 1 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 24 VDC

Output Voltage-Channel 3: - 24 VDC
