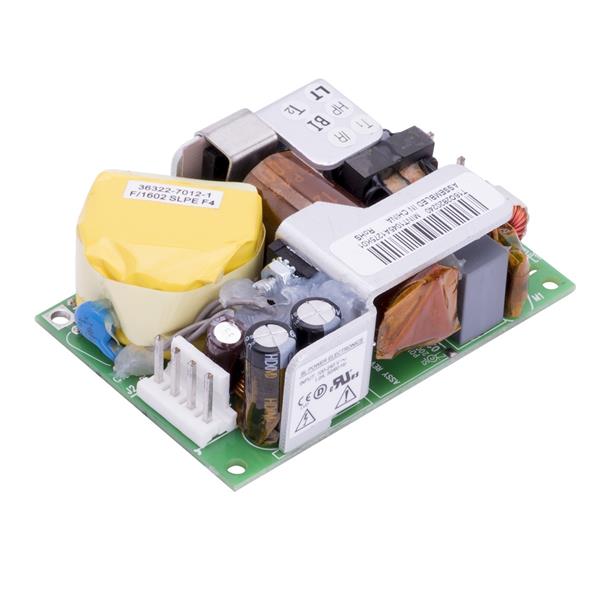

SL Power MINT1045A1575K01 Switching Power Supplies 45W 15 V 3 A Out

Width: 50.8 mm (2 in)

Height: 25.4 mm (1 in)

Length: 76.2 mm (3 in)

Industry: Medical

Approvals: EN60601-1, UL60601-1

Compliance: EN60601-1, UL60601-1

Efficiency: 88 %

Unit Weight: 232 g

Output Power: 45 W

Input Voltage: 80 VAC to 270 VAC

Cooling Method: Convection

Mounting Style: Chassis

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 4.5 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 270 VAC

Input Voltage - Min: 80 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 15 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
