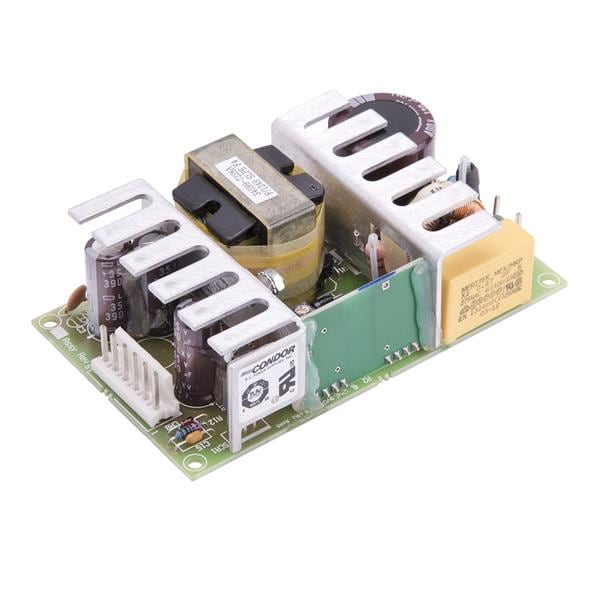

SL Power GLC50BG Switching Power Supplies 50W +5.1V/+12V/-12V

Width: 63.5 mm (2.5 in)

Height: 31.75 mm (1.25 in)

Length: 107.95 mm (4.25 in)

Industry: Industrial

Approvals: EN60950-1, UL60950-1

Compliance: EN60950-1, UL60950-1

Unit Weight: 141.748 g

Output Power: 50 W

Input Voltage: 90 VAC to 264 VAC

Cooling Method: Convection

Mounting Style: Chassis

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Number of Outputs: 3 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 4 A

Output Current-Channel 3: 200 mA

Output Voltage-Channel 1: 5.05 VDC

Output Voltage-Channel 2: 15 VDC

Output Voltage-Channel 3: - 15 VDC

Operating Temperature Range: 0 C to + 50 C

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
