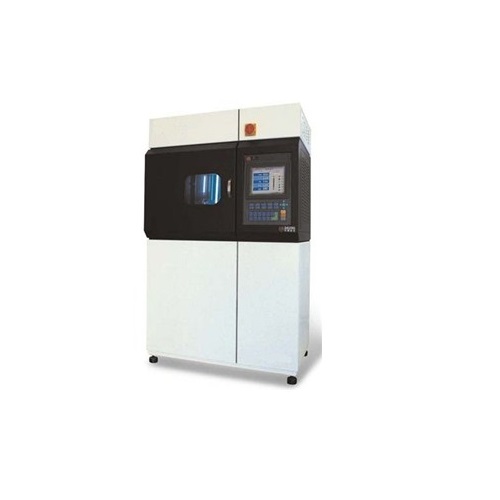

SKZ Industrial SKZ161B Solar Radiation Simulation Tester (1-1.5W/m2/ 420nm, 0'~999:59h)

Test compartment temperature control: 30～50℃, Resolution: 0.1 ℃

Storage humidity control test: Light condition:10-65% RH, humidity fluctuations ±3%RH

Dark condition:40-95% RH, humidity fluctuate ± 5% RH

Time control experiments: 0min~999:59h, Accuracy ± 1min

Irradiance control: 1-1.5W/m2/420nm Accuracy: ± 0.03W/m2/420nm; digital set, automatic compensation

Control and monitoring wavelength: Optional 340nm, 420nm ,300-400nm, 300-800nm,

Xenon arc lamp rated power: 3.5KW

Sample holder rotation speed: 5rpm

Maximum exposure area: 1170cm2

Sample holder can be mounted with the number of dimensions: 145 × 75mm model 18; 145 × 45mm model 26

Timing of each sample holder, respectively:≤10000h

Photoperiod: ≤10000h

Spray cycle: ≤10000h

Blackboard temperature range: (BPT） 40-75℃±2℃;（BST) 45-80℃±2℃

Display control: 10.4-inch touch screen

Data Output: Digital color display (A4 print in English optional)

Sample holder type: Double

Requirements within the recycled water: High water flow: 0.5L/min

Power supply: AC380V±5% 50Hz 6kW

Dimensions: 1250×1000×1800mm

Weight: 400kg
