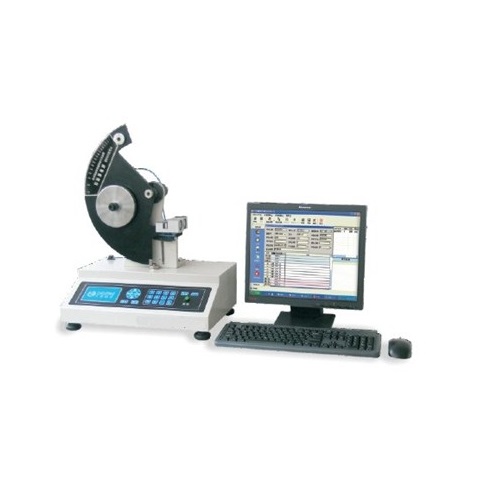

SKZ Industrial SKZ156B Computer system control Elmendorf Tearing Tester (1～64N)

Tear strength test range:

1～16N (Hammer A)

1～32N (Hammer B)

1～64N (Hammer C)

Test accuracy: ≤±0.2％F•S

Tear lengths: 43mm

Incision lengths: 20±0.2mm

Sample size: 100×63mm

Air source pressure: 0.6～0.8Mpa

Power supply: AC220V/50Hz, 100W

External dimensions: 480×350×640mm

Weight: 20kg

Output type:

LCD screen (240×128) shows the operation steps, setting parameters and test results.

Printing test report of Panasonic KX-P1131 24-pin printer (Chinese and English)
