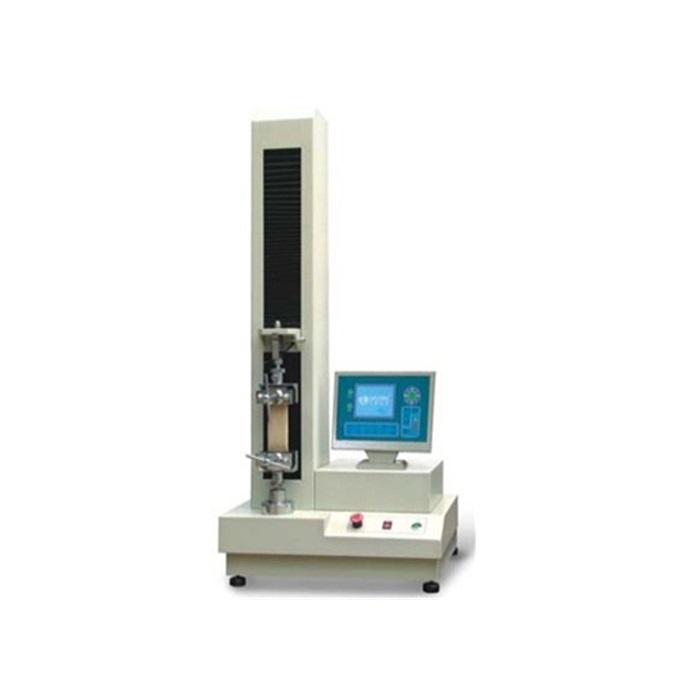

SKZ Industrial SKZ154A Universal Tensile Tester (1%～100% of the full range)

Working pattern: The constant rate of elongation (CRE) principle, micro computer controlling, supporting on-line communication. (optional)

Testing range:1%～100% of the full range

Testing accuracy:≤0.2%F•S, Display resolution: 0.1N

Tensile speed: 10-1000mm

Sampling frequency: 1000Hz

Communication interface: RS232 (Optional)

Effective stroke:600mm

Clamping distance:100mm (adjustable)

Power source:AC220V 50Hz 200W

External dimension: 670x480x1440mm

Weight: 147kg

Instrument configuration:

Host: 1unit

Sensor (1000N): 1unit (installed)

Fabric tensile strength gripper: 1pair

Pre-tension folder: 1*200cN, 1*500cN, 1*1000cN

Test software: 1 pair

Datasheet
