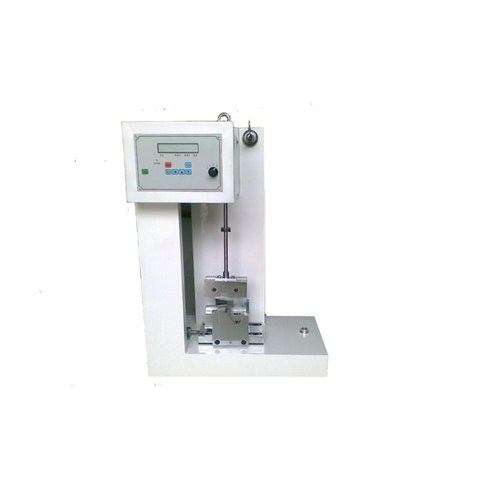

SKZ Industrial SKZ147B Digital Izod Impact Tester (22J)

Impact velocity: 3.5m / s

Pendulum energy: 2.75J, 5.5J, 11J, 22J,

Pendulum angle: 150°

Hitting center distance: 0.335m

Pendulum torque: T2.75=1.47372Nm T5.5=2.94744Nm

T11=5.8949Nm T22=11.7898Nm

Impact distance of the blade to the jaw: 22 ± 0.2mm

Blade fillet radius: R = 0.8mm ± 0.2mm

Measured angle accuracy: 0.2 degrees

Energy calculation:

Sub-file: 4 files

Method: the energy E = potential energy – loss

Accuracy: 0.05% of the indicated value

Units of energy: J, kgmm, kgcm, kgm, lbft, lbin. interchangeable

Temperature: -10 ℃ ~ 40 ℃

Power supply: AC220V, 50Hz
