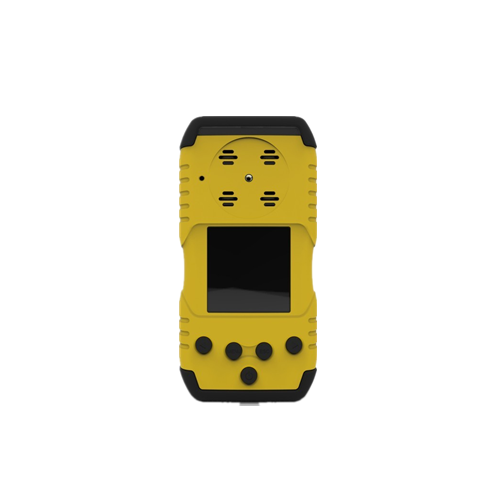

SKZ Industrial SKZ1054 Multi–Gas Detector (0~1000ppm ; 0 ~ 100 ppm; 0~30% vol; 0~100%LEL)

Operating & Storage Environment:

Temperature: -20°C~55°C (-4F~122F)

Humidity: 5%-95% (Relative humidity non-condensing)

Pressure: 95~110kPa

Sampling method: Diffusion type

Detecting Range:

CO: 0~1000ppm

H2S:0~100 PPM

O2: 0~30%vol

Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL

Sensor:

O2 /H2S / CO: plug-in electrochemical sensor

Combustible gas (LEL): plug-in catalytic combustion sensor

Alarm Type: low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm

Resolution: 0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)

Accuracy: 3% F.S

Response time: 10s

Repeatability: 1%

Zero drift: 1%

Display: Alphanumeric large LCD displays the real time gas concentration and alarm stage

Backlight: Automatically activated when working in poor lighting environment or the alarm sounding or the button i

s knobbed down.

Self-checking Function: Self-checking Battery power, display, sensor, hardware failure

Explosion-proof: EXiaIICT4

Protection grade: IP65

Power Supply:Rechargeable lithium battery

Weight: 211g

Dimensions: 126mm*66mm*33mm
