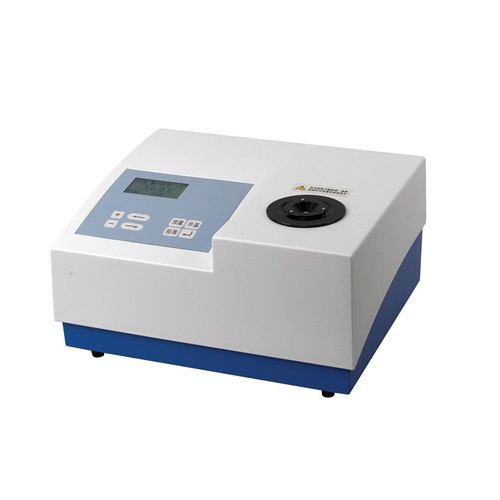

SKZ Industrial SKZ1040B Melting point Tester (300℃)

Melting point range: room temperature ~ 300 ℃

“Onset temperature” Setting Time: 50 ℃ ~ 300 ℃ less than 6min, 300 ℃ ~ 50 ℃ less than 7min

Minimum temperature indication: 0.1 ℃

Linear heating rate:

0.2 ℃ / min, 0.5 ℃ / min, 1 ℃ / min, 1.5 ℃ / min

2 ℃ / min, 3 ℃ / min, 4 ℃ / min, 5 ℃ / min

Linear heating rate error: not more than 10% of the set value

Indication error: less than 200 ℃: ± 0.4 ℃, 200 ℃ ~ 300 ℃: ± 0.7 ℃

Repeatability: heating rate of 1.0 ℃ / min, 0.3 ℃

Standard capillary dimensions: external diameter Φ1.4mm, inner diameter Φ1.0mm

Samples filling height: ≥ 3mm

Power supply: 220V ± 22V, 100W, 50Hz

Dimensions: 398mm x 278mm x 210mm

Weight: 12.5kg

Can transmit data to a computer
