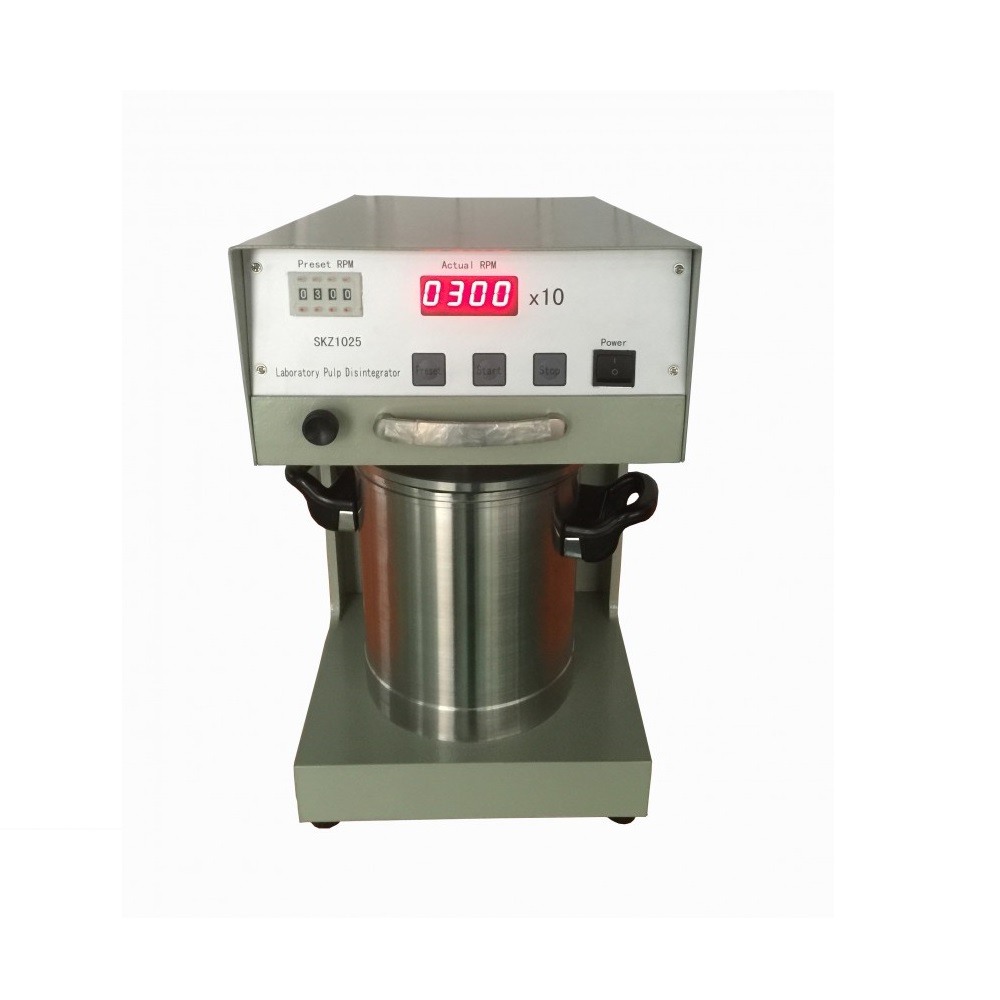

SKZ Industrial SKZ1025 Laboratory Pulp Disintegrator (φ152 × 191mm)

Vessel inner diameter × height: φ152 × 191mm

Spiral baffle inside: four inner spiral width × pitch × Number: 6.5 × 51 × 4

Agitator blades: φ90 three blades

Agitator shift: from the top is rotated clockwise

Distance from the bottom of the container agitator blade: 25mm

Impeller rotation frequency: 48.3 ± 1.65S-1

Total power: 220V/AC single-phase 400W, motor: 370W

Dimensions (L × W × H): 450 × 265 × 395 (mm)

Weight: 44 kg
