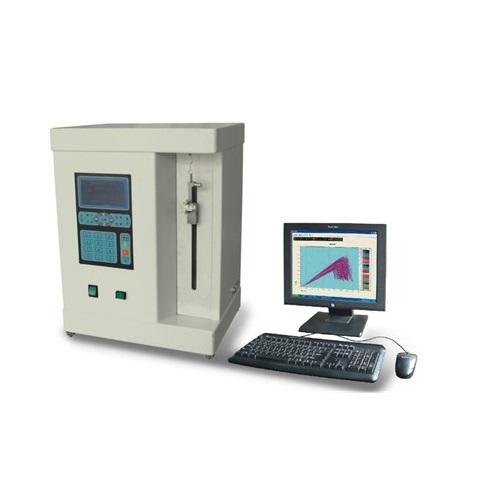

SKZ Industrial SKZ101-16B Yarn Strength Tester (200~500 cN)

Operating modes: constant elongation (CRE) principle, computer control, LCD display, support for online communications.

Sampling frequency: 1000 times

Load Test Range: 1% to 100% of full scale type

Type -2: 200 cN

Type: -5 500 cN

Load test error: 0.2% (F.S)

Tensile speed: 1 ~ 200mm/min

Maximum elongation measurement range: ≤ 140mm Resolution: 0.01mm

Power supply: AC220V ± 10% 50Hz 100W

Dimensions: 500 × 500 × 500mm (host)

Weight: 30Kg

Packing list:

Host: 1 PC

Software: 1 PC

Serial port connection cable: 1 PC

Air pressure machine: 1 PC

Air pipe: 1 PC Φ8mm, length 3m

Tension Clamp: 4 PC 0.1cN,0.2cN,0.3cN,0.4cN,0.5cN

Fuse: 2 PC 1A

Weight lifting tray: 1 PC

Weight: 1 UNIT
