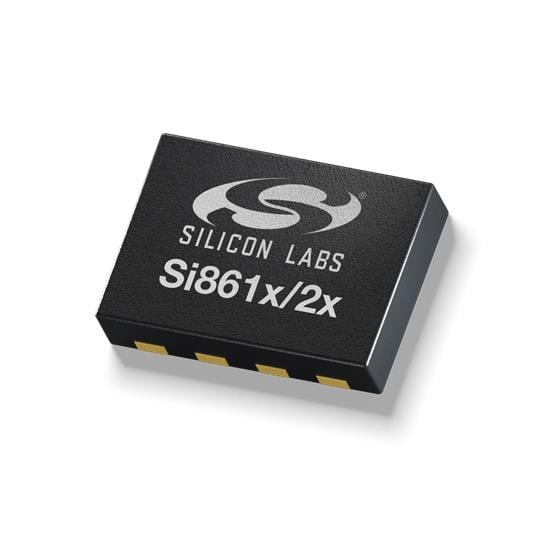

Skyworks Solutions Inc. SI8620EB-B-IM1 Digital Isolators 2.5 kV 2-channel digital isolator

Polarity: Unidirectional

Shutdown: Shutdown

Data Rate: 150 Mb/s

Pulse Width: 5 ns

Isolation Type: Capacitive Coupling

Mounting Style: SMD/SMT

Isolation Voltage: 2500 Vrms

Maximum Fall Time: 4 ns

Maximum Rise Time: 4 ns

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Pd - Power Dissipation: 150 mW

Propagation Delay Time: 8 ns

Pulse Width Distortion: 4.5 ns

Operating Supply Current: 1.4 mA, 3.3 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
