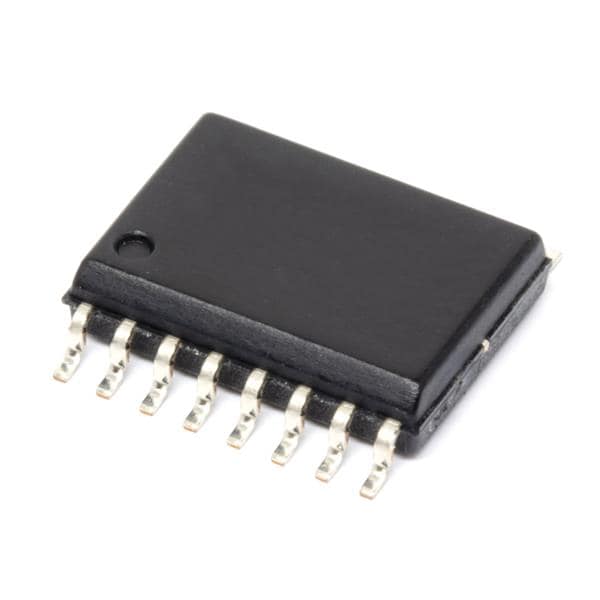

Skyworks Solutions Inc. SI8274GB4D-IS1R High-Side, Low-Side High CMTI 2.5 kV 3 V UVLO PWM input isolated driver with deglitch

Features: Industrial, High Speed, Low Latency And Skew

Shutdown: Shutdown

Fall Time: 18 ns

Rise Time: 16 ns

Logic Type: TTL

Technology: Si

Configuration: High-Side, Low-Side

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 4 mA

Output Voltage: 3 V

Development Kit: SI8275ISO-KIT

Isolation Voltage: 2.5 kVrms

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Input Voltage - Max: 5.5 V

Input Voltage - Min: 2.5 V

Supply Voltage - Max: 30 V

Supply Voltage - Min: 4.2 V

Pd - Power Dissipation: 1.2 W

Propagation Delay - Max: 105 ns

Operating Supply Current: 10 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 2.7 Ohms
