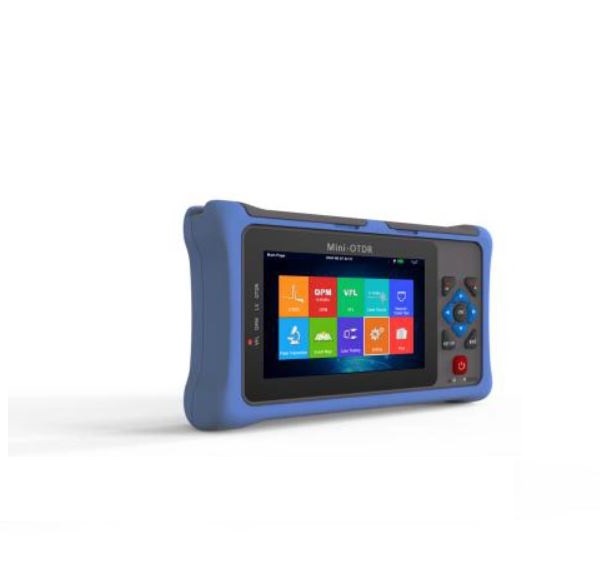

SKYCOM TOT560-A24D Touch Screen OTDR (+26dBm~-50dBm, 80km)

Wavelength: 1310/1550nm

Dynamic Range: 24/22dB

Max. Test Range: 80km

Measuring range: 100m、500m、2km、5km、10km、20km、40km、80km/90km

Pulse width: 5ns 10ns 20ns 50ns 100ns 200ns 500ns 1us 2us 5us 10us

Sampling resolution: Minimum: 0.02m

Event dead zone: < 2.0m

Attenuation dead zone: < 7.0m

The sampling point: 128,000 point

Linearity: ≤ 0.05dB/dB

Loss threshold: 0.01dB

Loss resolution: 0.001dB

Range resolution: 0.01m

Range accuracy: ≤(0.5m+Range&times;3&times;10-5+Sampling resolution) （Excluding refractive index error）

Memory: >40000 tested results

File Format: Sor standard file format

Data interface: 2 USB(Type A&times;1, Micro USB&times;1, SD card)

Screen: 4.3-inch TFT-LCD (Standard distribution capacity touch screen)

Power supply: Adapter /Charger input 100-240 VAC, 50Hz, lithium battery

Battery: 3.7V/5200mAh, Standby time > 10 hours

Temperature:

Working temperature：-10℃~+55℃

Storage temperature：-20℃~+80℃

Humidity: ≤95%（No condensation）

Size/Weight: 175x105x45mm / 0.56kg（Contain the battery）

OPM: +26dBm~-50dBm

VFL: 10mW，CW/2Hz

LS(Laser Source): The output power：-5dBm，Modulation frequency：CW/270Hz/1KHz/2KHz

Network Cable test: Support network wire sequence testing and wire alignment
