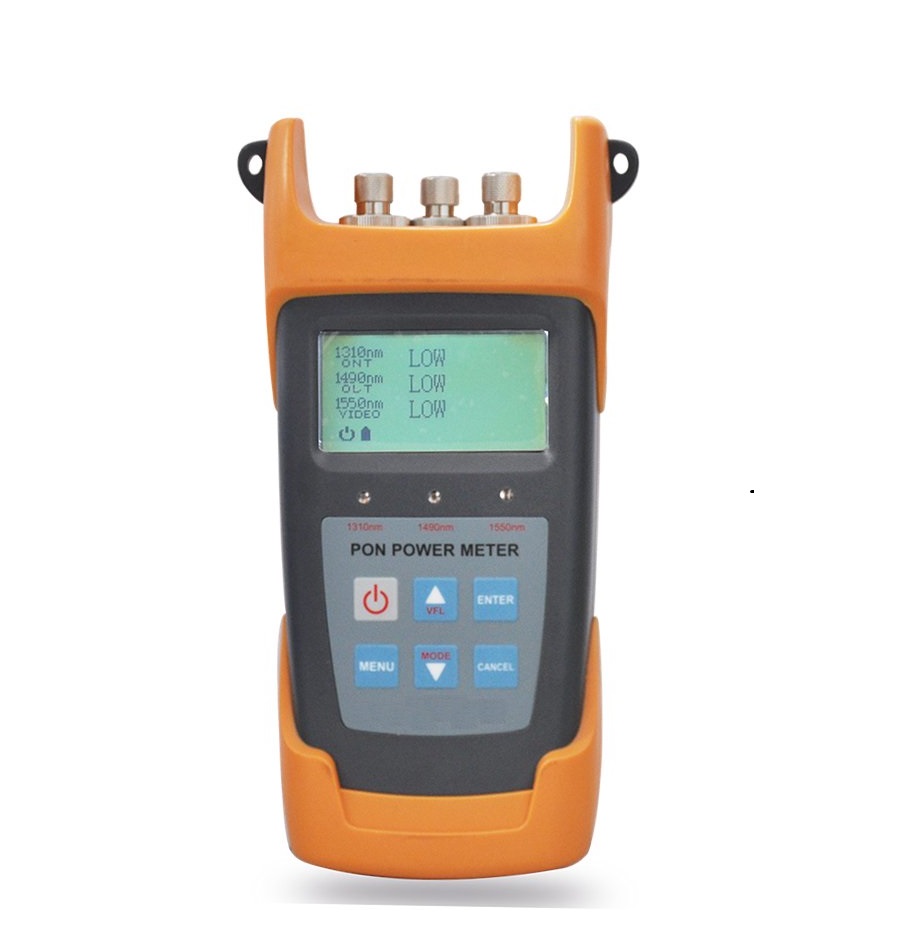

SKYCOM T-PO3213 PON Optical Power Meter (1310/1490/1550nm)

1310 upstream measurement:

Pass Zone (nm): 1260nm~1360nm

Measurement Range (dBm): -40dBm~+10dBm

Output power (max): 15dBm

Isolation@1490/1550(dB): >40dB

Burst mode measurement error: <±0.5dB

1490 downstream measurement:

Pass Zone (nm): 1470nm~1505nm

Measurement Range (dBm): -40dBm~+10dBm

Output power (max): 15dBm

Isolation@1310/1550 (dB): >40dB

1550 downstream measurement

Pass Zone(nm): 1535nm~1570nm

Measurement Range(dBm): -40dBm~+10dBm

Output power(max): 25dBm

Isolation@ (1310/1490nm): >40dB

Measurement Accuracy:

Connatural uncertainty(dB): ±0.5dB

Linearity (dB): ±0.1dB

Passing through insertion Loss (dB): <1.5dB

General Information:

Detector Type: InGaAs

Optical Connector: FC/SC/ST Interchangeable/2.5 universal adapter

Fiber Type: SM 9/125um

Measurement Unit: dB/dBm/xW

Resolution (dB): 0.01dB

Operation Voltage (V): DC 3.3V~5.5V

Power Supply: 3pc1.5V battery

Continuously Operation time (h): PON：90h

Operation Temperature (℃): -10℃~60℃

Storage temperature (℃): -25℃~70℃

Weight (kg): 423g
