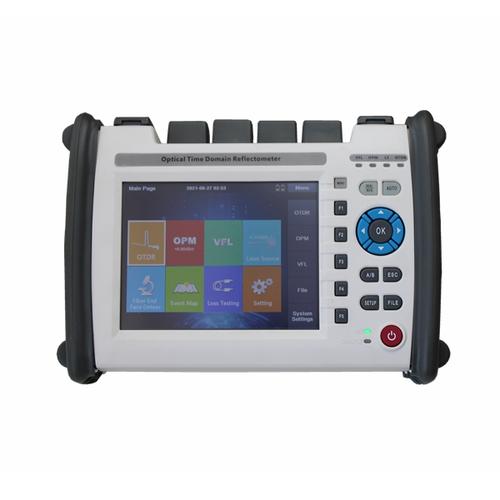

SKYCOM HJ2100-SM35 Optical Fiber Network Test

Wavelength(nm): 1310 /1550/850/1300

Dynamic Range: 35/32/20/26

Dead Zone(m): SM:0.8/4 MM:1.2/6

Sampling Resolution: Miminum 0.05m

Sampling Point: 128,000 points

Linearity: <0.05dB

Loss Resolution: 0.001dB

Distance Resolution: 0.01m

Distance Accurancy: 1m+distancex3x10-5+ sampling resolution

VFL: 10mW, CW/2Hz

Data Storage: > 100k traces

Display: 5.6 inch TFT-LCD, touch screen operation

Interface: 2 x USB ports (Type A x 1. Type B x 1)

Battery: Built-in Li-on battery pack x 2pcs (7.4V, 2200mAh)

Working Temperature: -10°C~+50°C

Storage Temperature: -20°C~+70°C

Humidity: ≤95% (non-condensing)

Size/Weight: 226 x 160 x 69mm/1.1kg(include battery)

Accessories: Spire lamella, Power adapter, Li-on battery, SC adapter, USB cable, Manual

Optional Items: FC/SC/LC adapter, OPM, OLS, Wifi, Fiber Inspection Probe, Event Map, OLTS, GPS, IOT module

OPM: A Type: +10dBm to -70dBm; B Type: +23dBm to-50dBm

OLS: Output: -5dBm, Frequency: CW/270Hz/1KHz/2KHz
