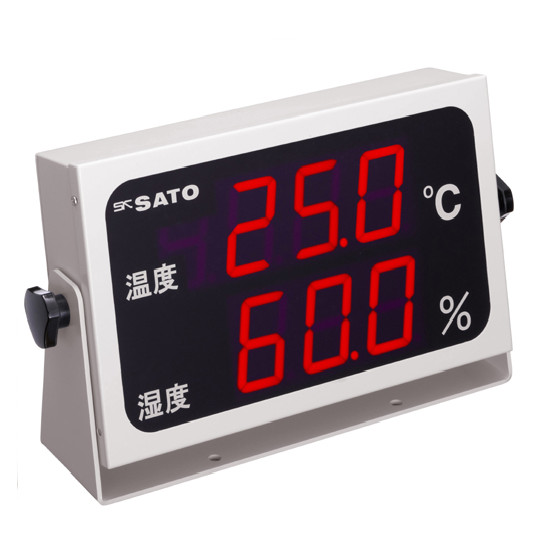

skSATO SK-M350-TRH Temperature/humidity Indicator (-15~65°C;5~99.9%rh)

Display: 7 segment LED height of character: approx. 57mm

Display range:

Temperature: -15.0 to 65.0 °C

Humidity: 5.0 to 99.9%rh

Display accuracy: ±(0.3 + 1 digit)°C/%rh

Input:

Temperature: -150 to 650mVDC (-15.0 to 65.0 °C)

Humidity: 50 to 999mVDC (5.0 to 99.9%rh)

Operation ambient: 0 to 50°C less than 85%rh (no condensing)

Power requirements: 12VDC (exclusive AC adapter is attached)

* AC adapter primery side: 100 to 240VAC 50/60Hz 0.3A, Secondry side: 12VDC 1A

Dimensions and weight: 360(w) x 202(H) x 85(D)mm; approx. 3.7kg

Accessories: AC adapter

Options: Alarm functions (upper/lower limits)
