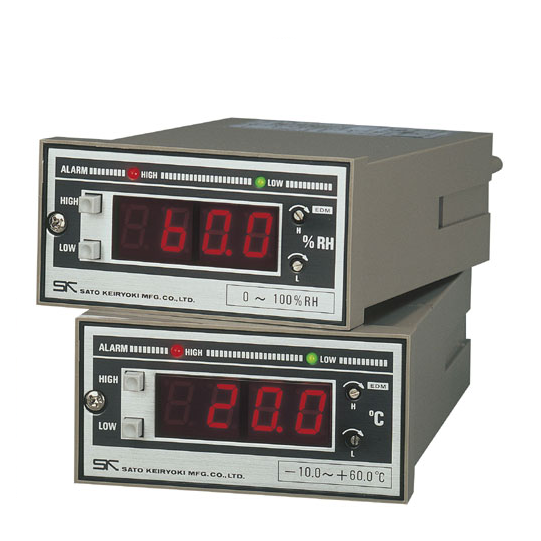

skSATO 8087-00 EDM Series Indicators (0~50°C;<85%RH)

Input: 7-segment red LED (height 14 mm)

Indicator:

Display: 7 segment LED 31/2 digits

Accuracy: F.S x 0.5% 1 digit

Setting range: Setting range

Output contact capacity: 250 VAC 1A (resistance load)

Transmission output (option):

DC Voltage: 0 to 10 mV, 1 to 5V

DC Current: 4 to 20 mA

Load impedance:

DC Voltage more than 10 kohm

DC Current less than 600 ohm

Power requirements: 100/110, 200/220, 115/220, 120/240 VAC

Permissible power requirement fluctuation: ±10% of rated voltage

Ambient: 0 to 50°C less than 85%RH

Power consumption: 5 VA

Outer dimensions: 96 (W) x 48 (H) x 145 (D) mm

Weight: 650 g

Datasheet
