Dimensions
Case dimensions (l x h x w): 530 x 85 x 180 mm
Instrument dimensions: 119 x 172 x 48 mm
Performance
Distance to spot ratio: 30:1
Temperature range using infrared: -60~760 °C
Temperature range using probe: -64~1400 °C
Properties
Alarms: High and low level alarm with warning sound
Auto switch off: Automatic, 60 seconds after trigger release in IR mode and 12 minutes after trigger release in probe mode
Battery: 2x AAA (Alkaline (incl.) or Rechargable)
Battery life: 3 h
Content

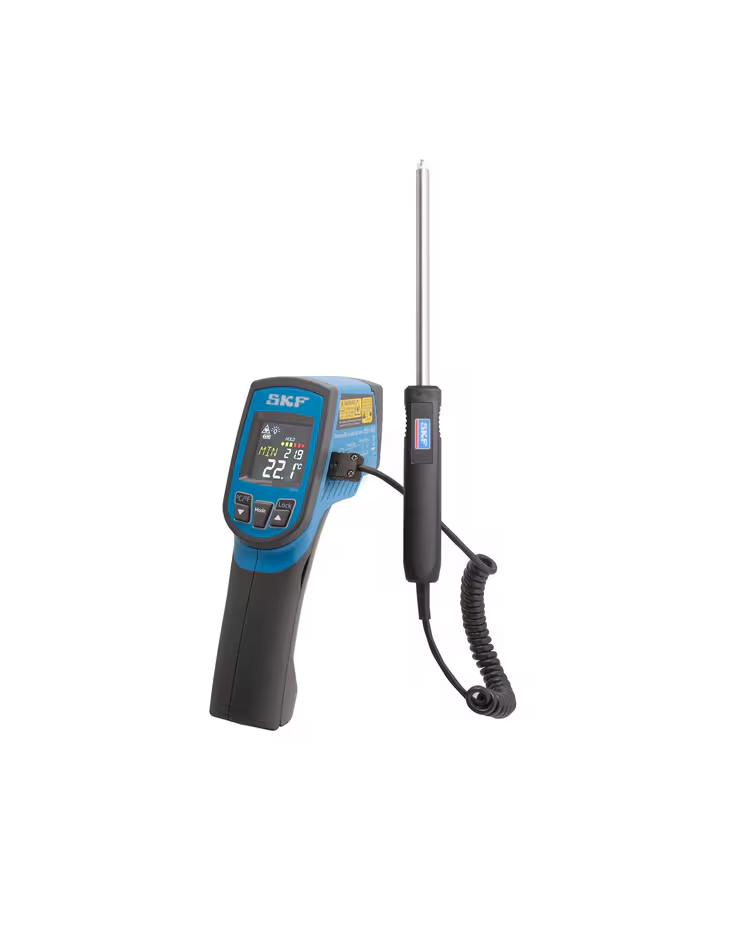

1x IR thermometer (TKTL 21)
1x Temperature probe (TMDT 2-30)
2x AAA Alkaline batteries
1x instructions for use (MP5494)
1x carrying case (size X)
Degree of protection (IP): IP 30
Display: LCD Color with LED backlighting
Emissivity: 0.1~1
Housing material: PC/ABS blend
Instrument weight: 260 g
Laser power max: 1 mW
Laser type: 8 x red targeting laser dots
Laser wavelength: 635 nm
Measurement modes
Maximum
Minimum
Average
Difference (between min and max)
Probe/IR dual temperature
Operating temperature range: 0~50 °C
Power adapter: No
Probe: K type probe, TMDT 2-30 included (max. 900 °C)
Recommended applications: Used in applications where knowing the right temperature is key. E.g. rotating equipment monitoring, HVAC installations, food safety monitoring, fire detection/prevention, and plastic moulding
Recommended storage temperature: -10~60 °C
Relative humidity: 10 to 95%, non-condensing
Resolution
0.1 °C/F (below 999.9)
1 °C/F (above 1000)
Response time: 1 000 ms
Spectral response: 8~14 µm
Tripod connector: Yes, (1/4-20 UNC)
