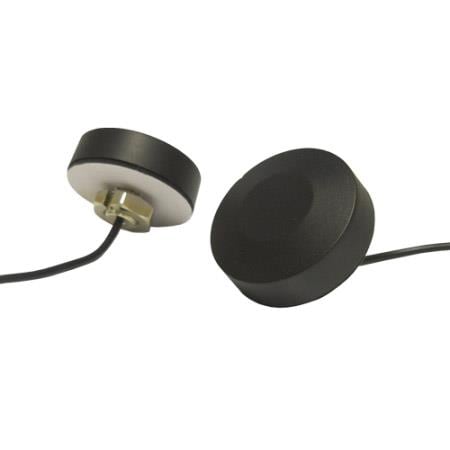

Siretta TANGO27/2.5M/SMAM/S/S/17 Passive Antenna IP67 GSM QUAD BAND AND 3G THROUGH HOLE MOUNT ANTENNA WITH 2.5M CABLE AND SMA MALE CONNECTOR

Gain: 2.16 dbi

VSWR: 2.1

Style: Puck

Length: 15 mm

Diameter: 46 mm

Frequency: 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 2.5 M RG174

Application: Cellular Applications

Unit Weight: 90 g

Cable Length: 2.5 m

Polarization: Vertical

Power Rating: 35 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Frequency Range: 800 MHz to 2.1 GHz

Number of Bands: 4 Band

Center Frequency: 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz

Mechanical Style: Module

Maximum Frequency: 2.1 GHz

Minimum Frequency: 800 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
