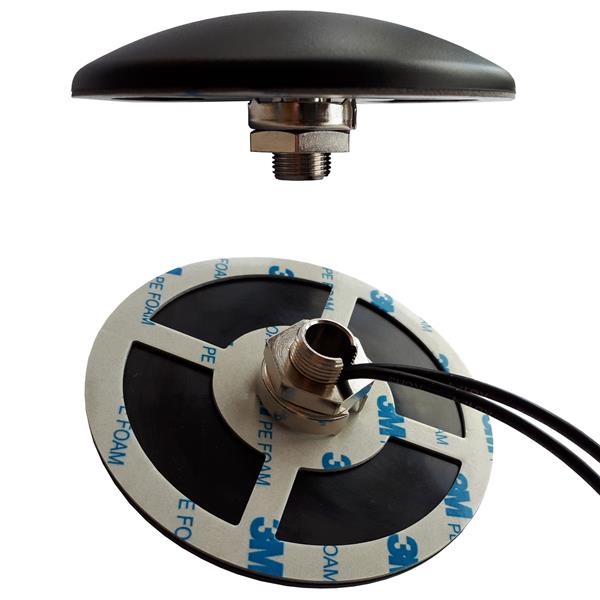

Siretta TANGO15/5M/SMAM//SMAM/S/S/22 Outdoor Antennas Low profile quad band GSM/GPS/3G bolt through antenna with 2 X 5M RG174 cable and SMA male

Gain: 2.5 dBi, 25 dB

VSWR: 2.0:1

Style: Bolt Through

Height: 18 mm

Length: 94 mm

Frequency: 890 MHz to 960 MHz, 1710 MHz to 1880 MHz, 2100 MHz, 1575.42 MHz

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: RG174

Application: GSM/GPS, 3G

Cable Length: 5 m

Polarization: Vertical, RHCP

Mounting Style: Screw Mount

Frequency Range: 890 MHz to 2.1 GHz

Number of Bands: 4 Band

Maximum Frequency: 2.1 GHz

Minimum Frequency: 890 MHz

Termination Style: SMA Male

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 3G, GSM
