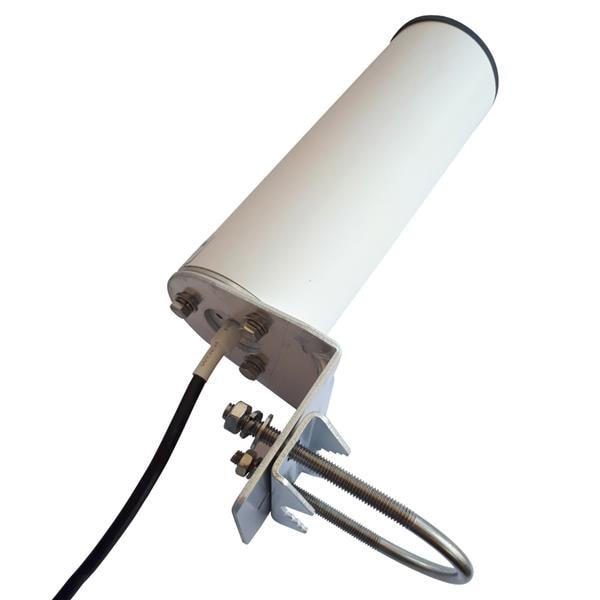

Siretta OSCAR40/10M/LL/SMAM/S/S/33 Passive Antenna 5G/4G, DUAL BAND WI-FI AND ISM OMNIDIRECTIONAL WALL/POLE MOUNT ANTENNA SMA MALE CONNECTOR 10M CABLE

Gain: 3 dBi to 5.5 dbi

VSWR: 1.5

Style: Directional

Length: 180 mm

Diameter: 60 mm

Frequency: 698 MHz to 960 MHz, 1.2 GHz to 5.85 GHz

Impedance: 50 Ohms

Cable Type: 10 M RG58

Application: Cellular Applications, Wireless, Applications, ISM Applications

Unit Weight: 820 g

Cable Length: 10 m

Polarization: Vertical, Linear

Power Rating: 50 W

REACH - SVHC: Details

Mounting Style: Bracket Mount

Frequency Range: 698 MHz to 5.85 GHz

Number of Bands: 2 Band

Center Frequency: 700 MHz, 750 MHz, 800 MHz, 850 MHz, 900 MHz, 1200 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2450 MHz, 3500 MHz, 4200 MHz, 4500 MHz, 5000 MHz, 5500 MHz

Mechanical Style: Log Periodic

Maximum Frequency: 5.85 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
