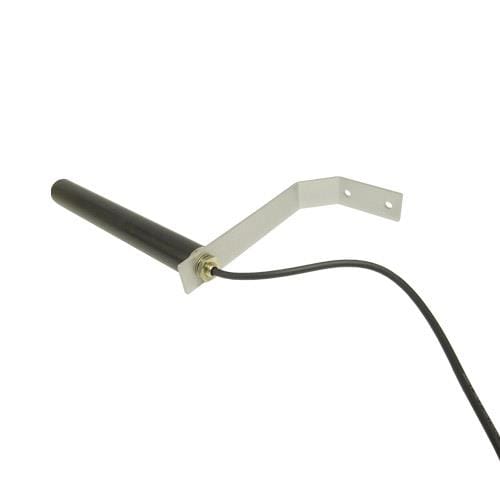

Siretta OSCAR1A/5M/SMAM/S/S/31 Passive Antenna 5G/4G, LORA, SIGFOX ISM OMNIDIRECTIONAL WALL MOUNT ANTENNA SMA MALE CONNECTOR 5M CABLE

Gain: 5 dBi

VSWR: 1.8:1

Style: Straight

Length: 205 mm

Diameter: 25 mm

Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Impedance: 50 Ohms

Cable Type: 5 M CD195

Application: Cellular Applications

Unit Weight: 345 g

Cable Length: 5 m

Polarization: Vertical

REACH - SVHC: Details

Mounting Style: Bracket Mount

Frequency Range: 850 MHz to 2.1 GHz

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Mechanical Style: Whip

Maximum Frequency: 2.1 GHz

Minimum Frequency: 850 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WLAN

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS, WCDMA
