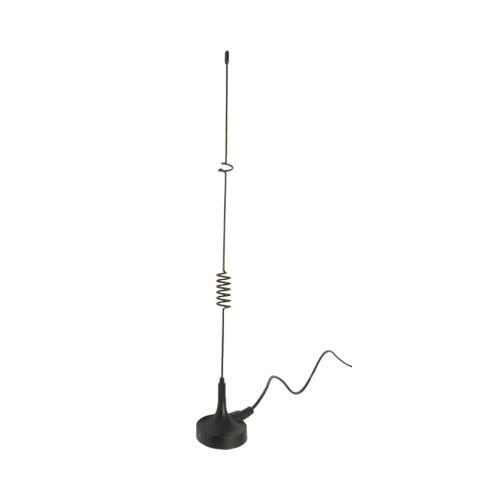

Siretta MIKE2A/3M/LL1/SMAM/S/S/26 Passive Antenna 5G/4G MAGNETIC 311MM WHIP ANTENNA SMA MALE CONNECTOR 3M LOW LOSS CABLE

Gain: 5 dBi

VSWR: 2

Style: Straight with Base

Length: 311 mm

Diameter: 40 mm

Frequency: 824 MHz to 960 MHz, 1.71 GHz to 2.17 GHz

Impedance: 50 Ohms

Cable Type: 3 M RG174

Application: Cellular Applications, ISM Applications

Unit Weight: 75 g

Cable Length: 3 m

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Magnetic Mount

Frequency Range: 824 MHz to 2.17 GHz

Number of Bands: 4 Band

Center Frequency: 868 MHz, 915 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Mechanical Style: Whip

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 45 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS
