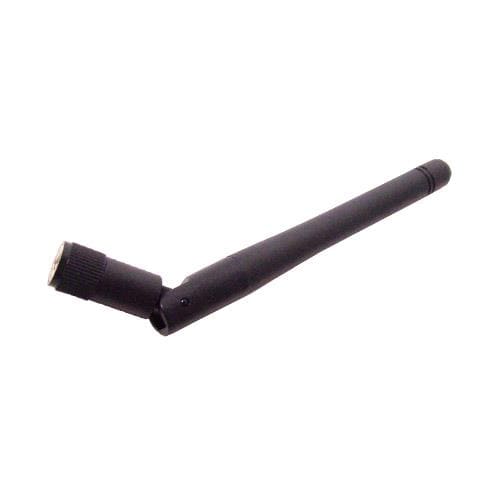

Siretta DELTA7B/X/SMAM/S/S/11 Passive Antenna Quad band GSM/GPRS hinged mount antenna with SMA male

VSWR: 2.0:1

Style: Tilt/Swivel

Width: 25.6 mm

Length: 110 mm

Diameter: 9.3 mm

Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: Cellular Applications

Unit Weight: 60 g

Polarization: Vertical

REACH - SVHC: Details

Mounting Style: Panel Mount

Frequency Range: 850 MHz to 1.9 GHz

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Mechanical Style: Whip

Maximum Frequency: 1.9 GHz

Minimum Frequency: 850 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS
