Gain: 5 dBi
VSWR: 2.0:1
Style: Tilt/Swivel
Width: 30.2 mm
Length: 196 mm
Diameter: 12.5 mm
Frequency: 2.4 GHz, 5.8 GHz
Impedance: 50 Ohms
Application: Wireless Applications, ISM Applications
Unit Weight: 30 g
Polarization: Vertical
REACH - SVHC: Details
Mounting Style: Panel Mount
Frequency Range: 2.4 GHz to 5.8 GHz
Number of Bands: 2 Band
Center Frequency: 2.45 GHz, 5.5 GHz

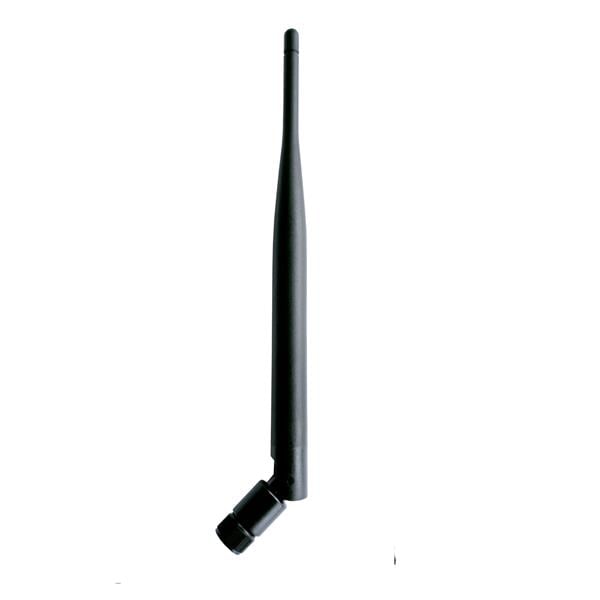

Mechanical Style: Whip
Maximum Frequency: 5.8 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM, U-NII
Antenna Connector Type: RP-SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 65 C
Minimum Operating Temperature: - 20 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
