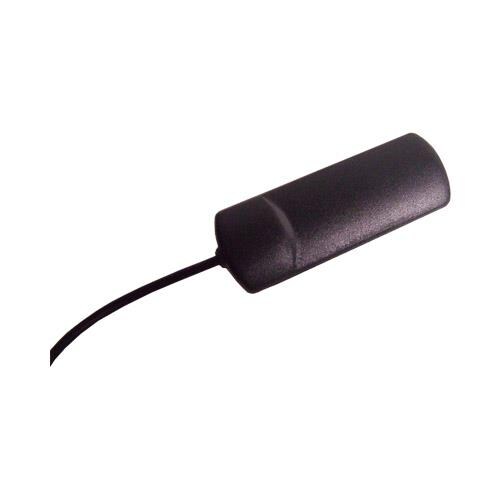

Siretta ALPHA3A/3M/SMAM/S/S/26 Passive Antenna QUAD BAND GSM/GPRS 3G WiFi & ISM ADHESIVE ANTENNA WITH 3M CABLE SMA MALE

Gain: 2 dBi

VSWR: 2

Style: I-Bar

Width: 25 mm

Height: 7.7 mm

Length: 72 mm

Frequency: 824 MHz to 894 MHz, 1.71 GHz to 2.17 GHz, 2.4 GHz to 2.5 GHz

Impedance: 50 Ohms

Cable Type: 3 M RG174

Application: Cellular Applications, ISM Applications, Wireless Applications

Unit Weight: 50 g

Cable Length: 3 m

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Frequency Range: 824 MHz to 2.5 GHz

Number of Bands: 4 Band

Center Frequency: 868 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 2.45 GHz

Mechanical Style: Module

Maximum Frequency: 2.5 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, GPRS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
