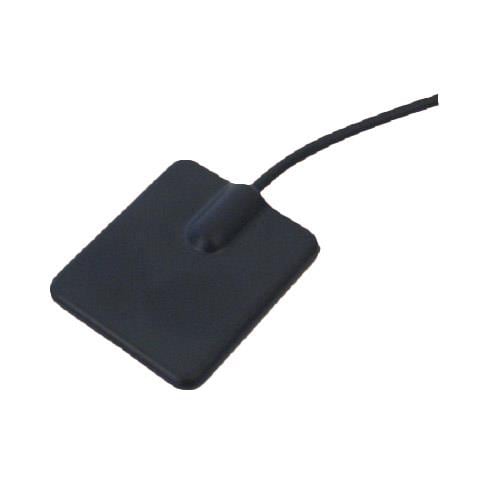

Siretta ALPHA14/0.5M/SMAM/S/S/26 Passive Antenna 5G/4G HIGH GAIN ADHESIVE PATCH ANTENNA 0.5M CABLE AND SMA MALE CONNECTOR

Gain: 2 dBi

VSWR: 2

Style: Panel, Square

Width: 33.5 mm

Height: 5.5 mm

Length: 39.9 mm

Frequency: 824 MHz to 960 MHz, 1.71 GHz to 2.17 GHz

Impedance: 50 Ohms

Cable Type: 0.5 M RG174

Application: Cellular Applications, ISM Applications

Unit Weight: 25 g

Cable Length: 500 mm

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Frequency Range: 824 MHz to 2.17 GHz

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz

Mechanical Style: Module

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
