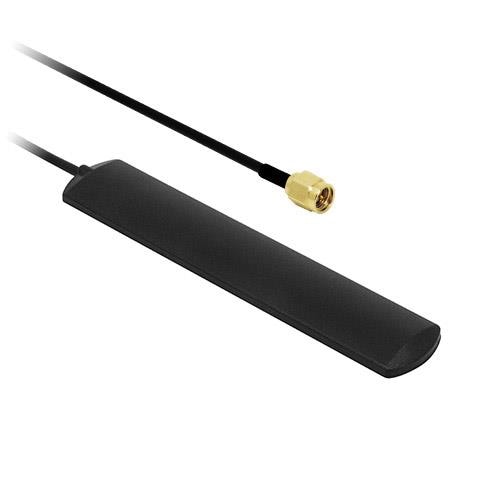

Siretta ALPHA11/0.2M/SMAM/S/S/20 Outdoor Antennas DUAL BAND WI-FI 5G/4G ADHESIVE FLAT BLADE ANTENNA SMA MALE 0.2M CABLE

Gain: 2.15 dBi

VSWR: 2

Style: Blade

Width: 22 mm

Height: 5 mm

Length: 115 mm

Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Impedance: 50 Ohms

Cable Type: RG174

Cable Length: 0.2 m

Polarization: Vertical

Power Rating: 60 W

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Frequency Range: 850 MHz to 2.1 GHz

Number of Bands: 4 Band

Mechanical Style: Blade

Maximum Frequency: 2.1 GHz

Minimum Frequency: 850 MHz

Termination Style: SMA Male

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
