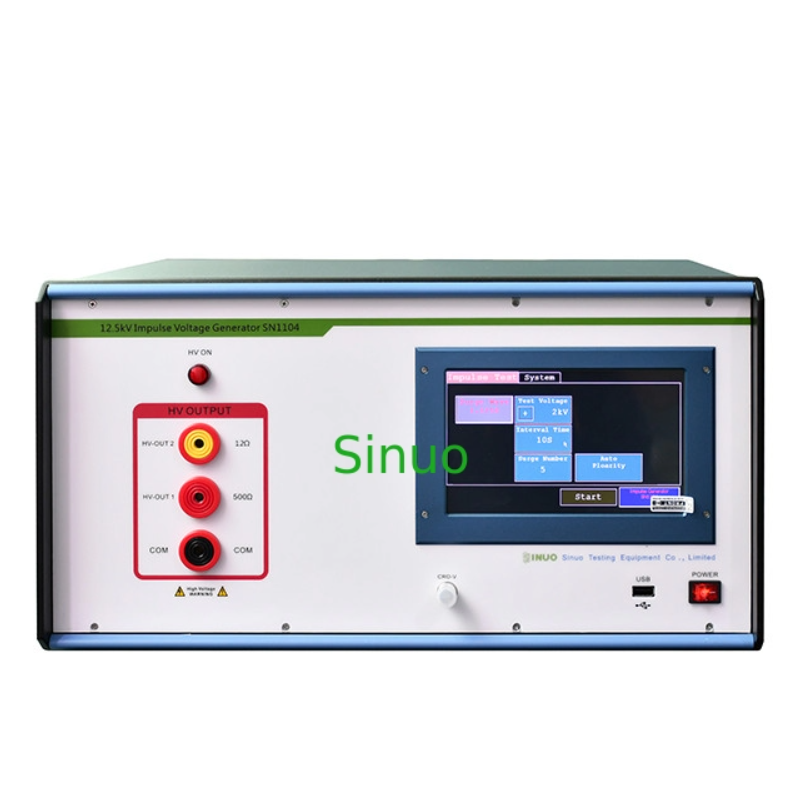

Sinuo SN1104 IEC 60335-1 Impulse Voltage Generator For Household Appliance (DC 12.5kV)

DC high voltage: Max. 12.5kV

Impulse voltage wave:

+ Impulse wavefront time: 1.2 µs±30%

+ Half value of after wave time: 50 µs±20%

Instrument internal resistance: 12Ω±10%

Internal resistance converter box: 500Ω - 10% is optional

Peak voltage:

+ 300 V~12500V

+ Low: 300 V~2500V

+ High: 2500 V~12500V

Impact interval time: 5~99s

Impact cycles: 1~9999

Polarity: Positive and negative

Working power source: Rated voltage:~220V±10%, 60Hz

Dimension: 430mm×180mm×480mm

Weight: 20 kg
