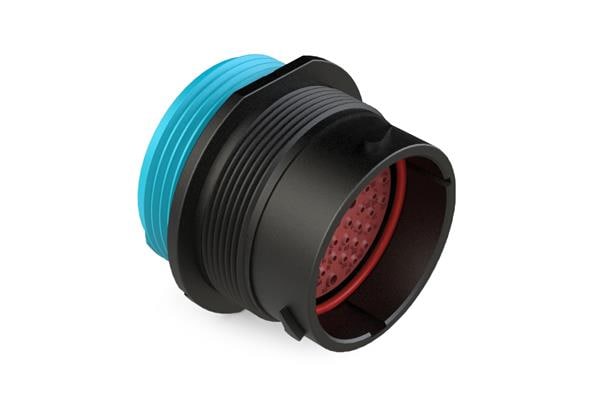

Color: Black
Gender: Receptacle (RP - Male)
Length: 41.5 mm
Insulation: Insulated
Unit Weight: 77.445 g
Mating Gender: AHDP06-24-47S
Contact Gender: Pin (Male)
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Wire Gauge Max: 14 AWG, 16 AWG
Wire Gauge Min: 20 AWG, 22 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 22 AWG to 16 AWG, 20 AWG to 14 AWG
Termination Style: Crimp
Flammability Rating: UL 94 V-0
Number of Positions: 47 Position
Description/Function: Size 24
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
