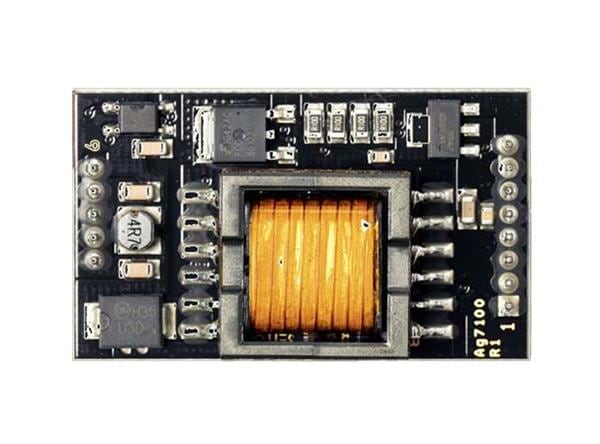

Silvertel Ag7100 Isolated Boost Converter Module, 40W, Isolated DC-DC converter, IEEE802.3at compliant, 11-27V In, 48/57V Out, DIL.

Width: 30 mm (1.181 in)

Height: 11 mm (0.433 in)

Length: 50.6 mm (1.992 in)

Industry: Industrial

Dimensions: 30 mm x 11 mm x 50.6 mm

Output Power: 40 W

Input Voltage: 12 V to 27 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 27 V

Input Voltage - Min: 12 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 700 mA

Output Voltage-Channel 1: 57 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
