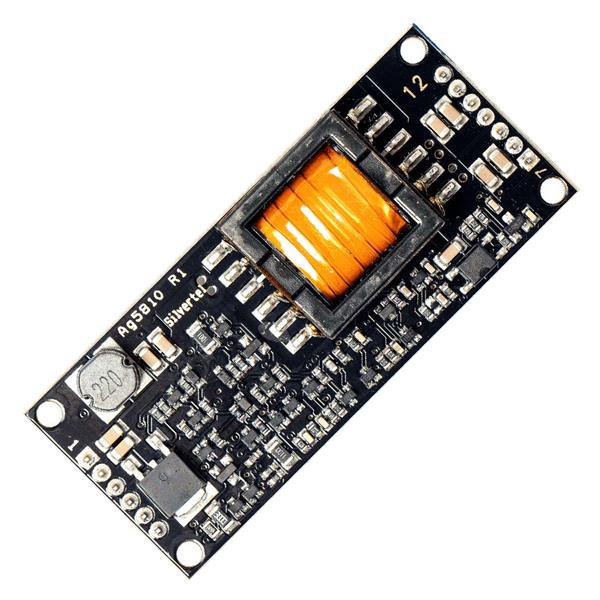

Silvertel Ag5810 High Efficiency PoE PD Module, 60W, 12V/24V, IEEE802.3bt compliant, Dual-in-line

Width: 30 mm

Height: 11.5 mm

Length: 69.98 mm

Features: Overload, Short-circuit and Thermal Protection

Compliance: 802.3bt

Efficiency: 88 %

Unit Weight: 30.381 g

Output Power: 60 W

Input Voltage: 36 V to 57 V

Mounting Style: Panel

Load Regulation: Regulated

Number of Ports: 2 Port

Number of Outputs: 2 Output

Output Current-Channel 1: 2.5 A, 5 A

Output Voltage-Channel 1: 12 V, 24 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
