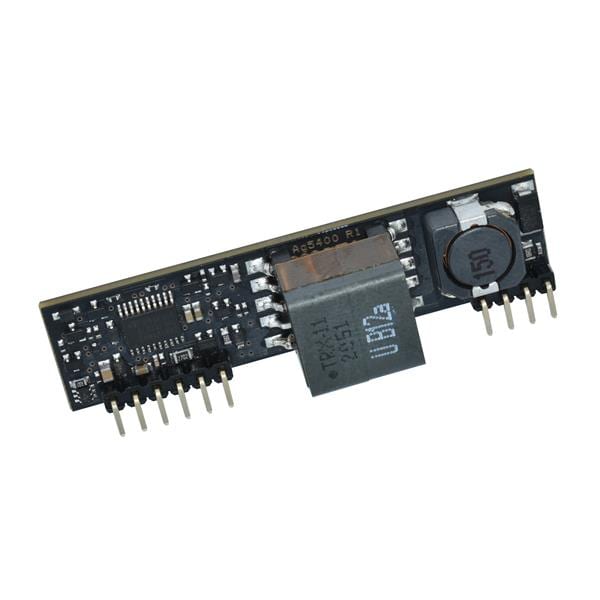

Silvertel AG5412 High Efficiency PoE PD Module, 30W, 12V, High Efficiency, IEEE802.3at compliant, Single-in-line

Width: 19.5 mm

Height: 14 mm

Length: 57.3 mm

Features: Overload, Short-circuit and Thermal Protection

Compliance: 802.3af/at/bt

Efficiency: 93.3 %

Output Power: 30 W

Input Voltage: 36 V to 57 V

Mounting Style: Through Hole

Load Regulation: Regulated

Number of Ports: 1 Port

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Output Current-Channel 1: 2.5 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
