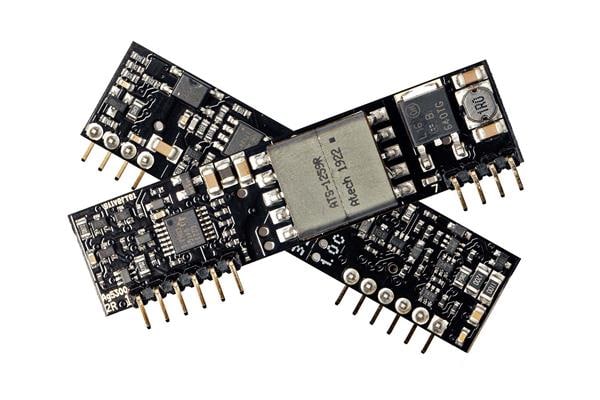

Silvertel Ag5300 High Efficiency PD Module, 30W, IEEE802.3at compliant, 12V or 24V, SIL.

Width: 18 mm

Height: 14 mm

Length: 57.3 mm

Features: Overload, Short-circuit and Thermal Protection

Compliance: 802.3af/at

Efficiency: 87 %

Unit Weight: 26.317 g

Output Power: 30 W

Input Voltage: 36 V to 57 V

Mounting Style: Through Hole

Load Regulation: Regulated

Number of Ports: 1 Port

Number of Outputs: 1 Output

Output Current-Channel 1: 2 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
