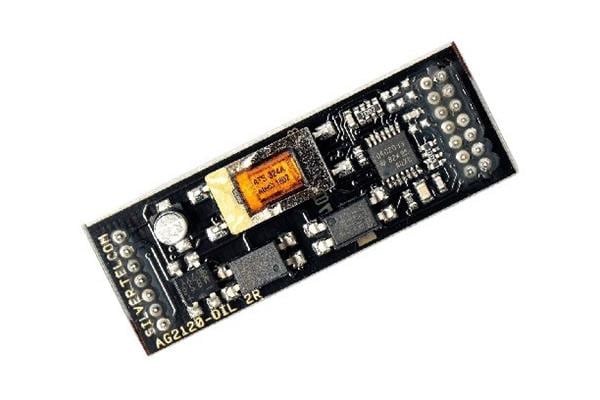

Silvertel Ag2120-D PSTN PSTN Interface / Central Office Interface Circuit (COIC), Fully-featured, Programmable Input & Network Balance Impedance, Internal Loop Switch, Programmable DC Mask, 3.3V to 5V Supply Voltage, Dual-in-line (DIL)

Dimensions: 51 mm x 19 mm x 11 mm

Interface Type: 2-Wire

Supply Voltage - Max: 3.47 V/5.25 V

Supply Voltage - Min: 3.13 V/4.75 V

Operating Supply Current: 20 mA

Operating Supply Voltage: 3.13 V/4.75 V to 3.47 V/5.25V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
