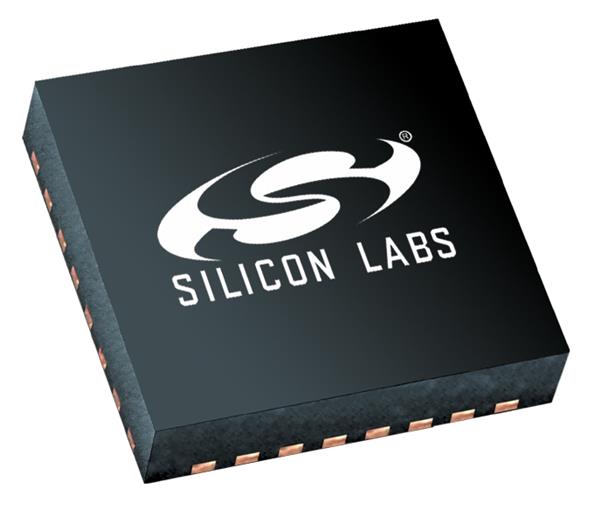

Silicon Labs EFR32FG22E121F512IM32-CR RF System on a Chip - SoC FG, QFN32, 38.4 MHz, 2.4G, 6dBm, Proprietary, 512kB, 32kB(RAM), 18 GPIO, 125 C

Core: ARM Cortex M33

Width: 4 mm

Height: 0.85 mm

Length: 4 mm

Technology: Si

Sensitivity: - 96.2 dBm

Output Power: 6 dBm

Data RAM Size: 32 kB

Data RAM Type: RAM

ADC Resolution: 12 bit, 16 bit

Data Bus Width: 32 bit

Interface Type: I2C, UART

Mounting Style: SMD/SMT

Number of I/Os: 18 I/O

Number of Timers: 1 x 32 bit, 4 x 16 bit

Maximum Data Rate: 2 Mbps

Moisture Sensitive: Yes

Program Memory Size: 512 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.71 V

Maximum Clock Frequency: 76.8 MHz

Supply Current Receiving: 3.6 mA

Operating Temperature Range: - 40 C to + 125 C

Supply Current Transmitting: 8.2 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
