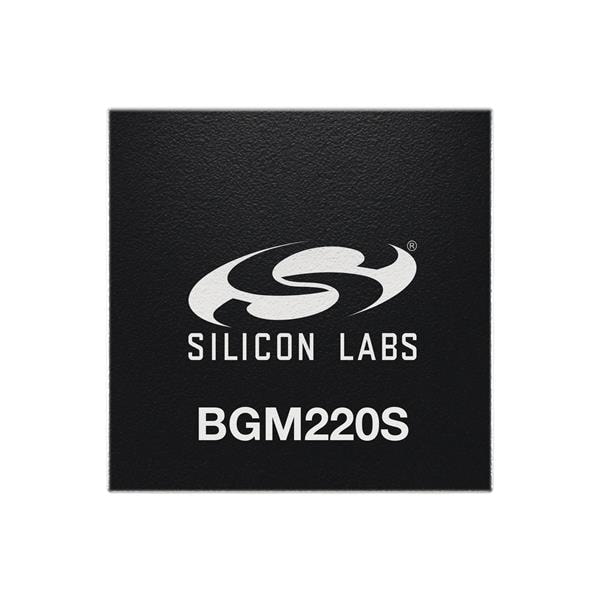

Silicon Labs BGM220SC12WGA2 Bluetooth Modules Wireless bluetooth SiP module, Secure Boot w/Root of Trust and Secure Loader(RTSL), 38.4 MHz, 6 dBm, PLFRCO, 352kB, 32kB(RAM), Built-in antenna/RF pin, 24 GPIO, 85C

Core: ARM Cortex M33

Width: 6 mm

Height: 1.1 mm

Length: 6 mm

Antenna: Integrated

Protocol: BLE, Bluetooth 5.4

Data Rate: 2 Mb/s

Frequency: 2.44 GHz

Shielding: Shielded

Dimensions: 6 mm x 6 mm x 1.1 mm

Memory Size: 32 kB, 352 kB

Sensitivity: - 98.6 dBm

Output Power: 6 dBm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Frequency Range: 2.4 GHz to 2.4835 GHz

Moisture Sensitive: Yes

Modulation Technique: GFSK

Receiver Sensitivity: - 95.9 dBm

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: Chip

Operating Supply Voltage: 1.8 V to 3.8 V

Supply Current Receiving: 4.2 mA

Supply Current Transmitting: 4.6 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
