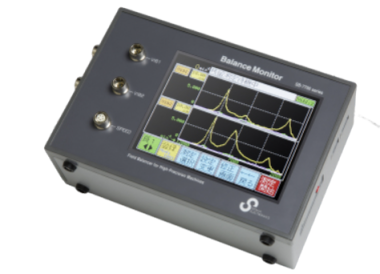

Sigma Electronics SB-7705RSGW-6 Field Balancer (6CH, 180~240000 min^-1, 2 grinder)

Measurable rotation speed: super high speed

Applicable Rotors: Rigid Rotor, Flexible rotor, Grinding wheel

Balancing Speed(Fixed-speed): 180min^–1 to 240,000min^–1

Balancing Speed(Multi-speed): 600min^–1 to 240,000min^–1

Resolution of rotational speed display: 1 min^–1

Resolution of vibration: 0.001µm

Vibration input channel: 6 ch

Measuring method: Multi-speed measurement, Fixed-speed measurement

Number of Correction plane: 1 to 4 (Multi-speed), 1 to 2 (Fixed-speed)

Correction method

Polar coordinates: 0° to 359° (angle resolution：1°)

Components of unbalance vector: 3 to 50

Correction weight: Add / Remove

Vibration analysis function

Unbalance Vibration Analysis: Time-series record of unbalanced vibration vectors

Harmonic Vibration Analysis: Analysis of harmonic components

FFT Analyzer: Frequency analysis function (Includes time waveform measurement function)

OverAll Vibrometer: Acc. Peak / Acc. RMS / Acc. C.F. / Vel. RMS / Disp. EQP (Meas. range Acc：0.1 to 40m/s²)

Unbalance correction: Balance weights arrangement for grinding wheel: 2-plane
