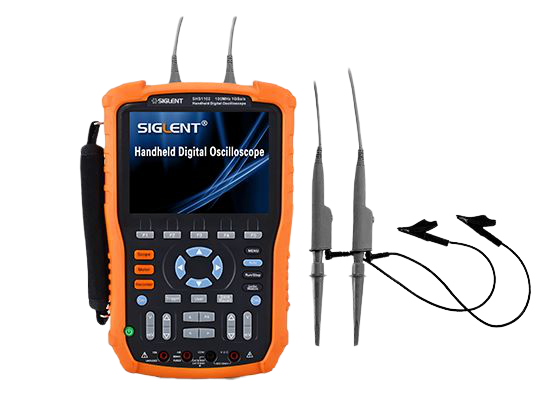

Siglent SHS1102 Handheld Oscilloscope (100Mhz, 2 ch, 1GSa/s)

Scope

Type

SHS1102

Bandwidth

100MHz

Rise Time

≤3.5ns

Real Time Sampling Rate

Single Channel: 1GSa/s,
Double Channels: 500MSa/s

Equivalent Sampling Rate

50GSa/s

Memory Depth

2Mpts

Time Base Range

2.5ns/ div – 50s/ div

Scan Range

100ms/ div ～ 50s/ div

Vertical Sensitivity

5mV/div – 100V/div(1-2-5 order)

Vertical Resolution

8 bits

Trigger Types

Edge, Pulse, Video, Slope, Alternative

Frequency Counter

6 bits

Connection

USB Device, USB Host

Math

+, -, * , /, FFT

Oscilloscope Trend Plot

800K points

Meter

Maximum Resolution

6000

DC Voltage

60mV
600mV—1000V

(±1%±15digit)
(±1%±5digit)

AC Voltage

60mV
600mV—750V

(±1%±15digit)
(±1%±5digit)

DC Current

60.00mA—600mA
6A—10A

(±1%±5digit)
(±1.5%±5digit)

AC Current

60.00mA—600mA
6A—10A

(±1%±5digit)
(±1.5%±5digit)

Resistance

600Ω—60MΩ

(±1%±5digit)

Capacitance

40nF
400nF--400uF

(±3%±10digit)
(±4%±5digit)

Diode

0—2V

Continuity

<50Ω Buzzer sounds

Multimeter Trend Plot

1.2M points

channels from earth ground,
between two channels
references

Overvoltage Category

Maximum Voltage

CAT I&CAT II

1000 Vrms

CAT Ⅲ

600 Vrms

between Multimeter input
reference and the ground

Overvoltage Category

Maximum Voltage

CAT I&CAT II

600 Vrms

CAT Ⅲ

300 Vrms

Max. input Voltage for BNC

Overvoltage Category

Maximum Voltage

1x CAT I&CAT II

300 Vrms

1X CAT Ⅲ

150 Vrms

10x CAT I&CAT II

1000 Vrms

10X CAT Ⅲ

600 Vrms

Max. input Voltage for
Multimeter input port

Voltage port

DC 1000V, AC 750V

Current port(mA)

AC 250V/600mA

Current port(A)

AC 250V/10A

Single Channel Common
Mode Rejection, typical

>1000:1 50MHz

Channel-to-Channel
Isolation

>35 dB

General Feature

Display

5.7 inches color TFT-LCD, 320x234

Power supply

With battery or DC adapter to get power from outside

Power source

Built-in rechargeable lithium battery: 7.4V 5000mAh, Battery persisting 4 hours With DC adapter: 100-240V 50/60Hz input 9V 4A output.

Weight

1.5Kg

Dimension

163.2mm×259.5mm×53.3mm
