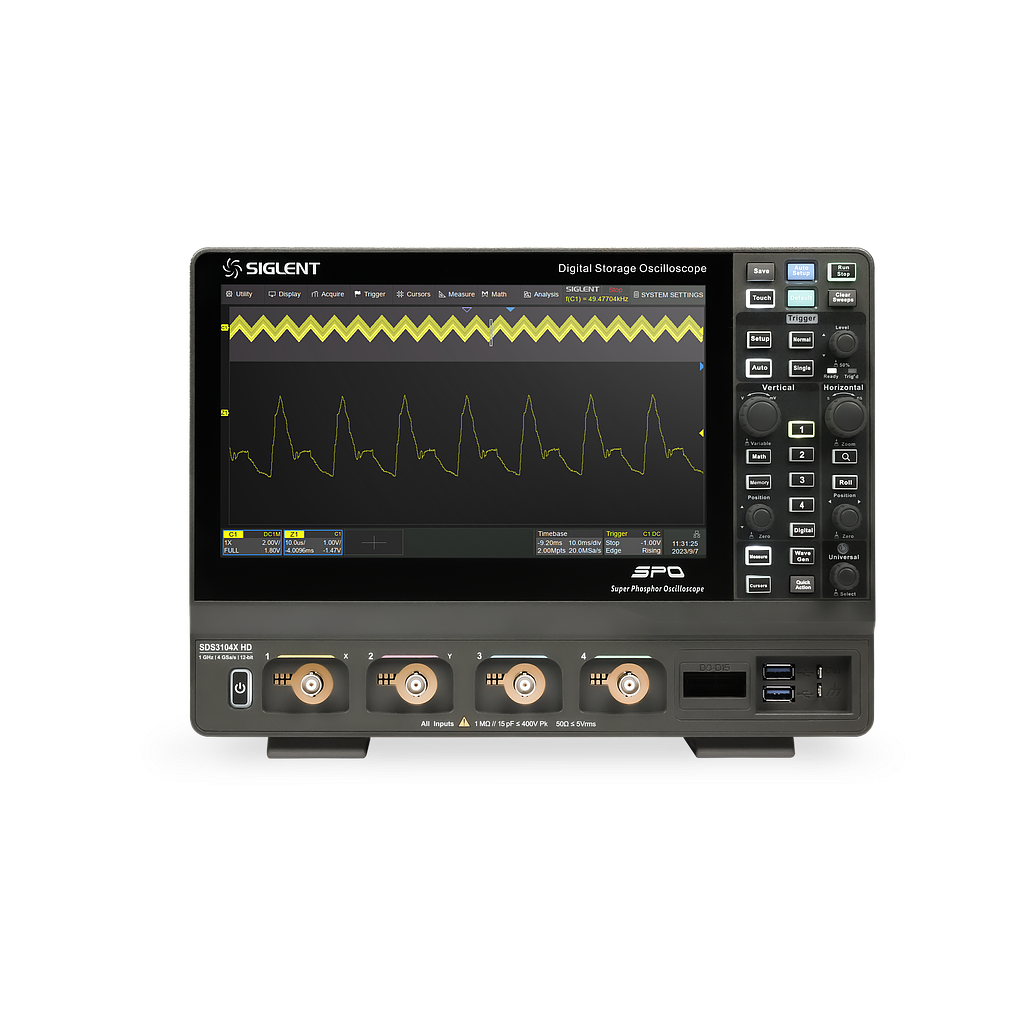

Analog channels: 4 + EXT
Bandwidth: 1 GHz (800 MHz in non-interleaving mode)
Sample rate (Max.): 4 GSa/s (interleaving mode), 2 GSa/s (non-interleaving mode)
Memory depth (Max.): 400 Mpts/ch (interleaving mode: single-channel), 200 Mpts/ch (interleaving mode: dual-channel), 100 Mpts/ch (non-interleaving mode)
Waveform capture rate (Max.)
+ Normal mode : 200,000 wfm/s;
+ Sequence mode : 890,000 wfm/s
Vertical resolution: 12-bit. Up to 16-bit in ERES mode
Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode:
+ Standard: I2C, SPI, UART, CAN, LIN;
+ Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429
Measurement: 50+ parameters, statistics, histogram, trend, and track supported
Math:
+ 4 traces
+ 4 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor
Data analysis: Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis
Digital channel (optional): 16-channel; maximum sample rate up to 1 GSa/s; record length up to 100 Mpts
Waveform generator (optional): Single-channel SAG1021I, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
I/O: USB 3.0 Host x2, USB 2.0 Host x1, USB 3.0 Device, 10M/100M/1000M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL)
Probe (Standard): One 500 MHz passive probe supplied for each channel
Display: 10.1 TFT-LCD with capacitive touch screen (1024*600)
