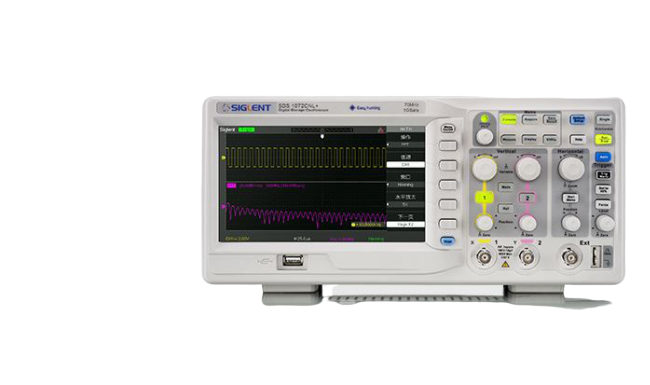

Siglent SDS1202CNL Digital Oscilloscope (200Mhz, 2Ch, 1GSa/s)

Name: Siglent SDS1202CNL Digital Oscilloscope (200Mhz, 2Ch, 1GSa/s)
Brand: SIGLENT

ModelSDS1202CNL

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Model			SDS1202CNL
Bandwidth			200MHz
Channels	2CH+1EXT
Real time sampling rate			1GSa/s (each channel)
Equivalent sampling rate	50GSa/s
Memory depth			5kpts/CH
Rise time			< 1.7ns
Input impedance			1MΩ‖14pF, 50Ω
Time base range		2.5ns/div-50s/div
	Scan: 100ms-50s/div
Vertical sensitivity			2mV - 5V/div
Vertical resolution	8bit
Trigger source	CH1, CH2, Ext, Ext/5, AC Line
Trigger types	Edge, Pulse, Video, Slope, Alternative
Math Operation	+, -, ×, ÷, FFT
Digital filter	High pass, Low pass, Band pass, Band Stop
Max input voltage	±400V(DC+AC Pk-Pk), CAT I, CAT II
Internal storage	2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms		2 groups of reference waveform, 20 groups of settings, 20 groups of waveforms
External storage	Bitmap save, CSV save, Waveform save, Setting save
Language	English, French, German, Russian, Spanish, Simplified Chinese, TraditionalChinese, Portuguese, Japanese, Korean, Italian, Arabic
Interface	USB Host, USB Device, RS-232, Pass/Fail out
Display	7 inches(178mm) color TFT(480*234) LCD
Power	AC 100-240V, 45Hz-440Hz, 50VA Max
PC software	Can through the computer remote control oscilloscope, extraction waveform analysis data
Remark	With original source seamless connection, form signal collection, produce integration system
Detailed performance parameters and technical index please refer to《SDS1000CNL Series Datasheet》

Optional Accessories:

1. BNC Coaxial cable
2. RS-232 Serial line
3. USB-GPIB
4. EasyDsoLib Software setups (free)
5. Oscilloscope portable bag
