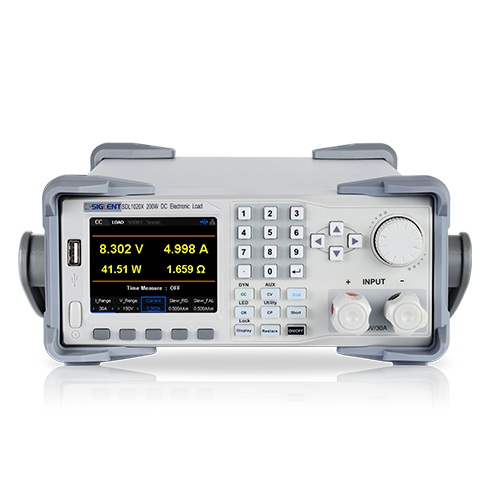

SIGLENT SDL1020X-E Programmable DC Electronic Load (1mV/1mA; 200W; 30A; 150V)

Min. readback resolution: 1mV, 1mA

Display: 3.5 inch TFT-LCD display

Current slew rate: 0.001A/us~2.5A/us

Measuring speed: up to 500kHz

CC Dynamic mode frequency: 25kHz

Input rating (0~40℃)

- Input voltage: 0~150V

- Input current: 0~5A, 0~30A

- Input power: 200W

- Minimum operating voltage (DC): 0.15V at 30A, 0.9V at 30A

CV Mode

- Range: 0~36V, 0~150V

- Resolution: 1mV

- Accuracy: ±(0.05%+0.025%FS) 50ppm/℃

CC Mode

- Range: 0~5A, 0~30A

- Resolution: 1mA

- Accuracy: ±(0.05%+0.05%FS) 100ppm/℃

CR Mode

- Range: 0.03Ω~10kΩ

- Resolution: 1mA/Vsense

- Accuracy: 0.01%+0.0008s

CP Mode

- Range: 200W

- Resolution: 10mW

- Accuracy: 0.1%+0.1%FS

Dimension: 256*115*410 (WxHxDmm)

Weight: 5.8kg

Standard accessories

USB Cable: 1

Quick Start: 1

Calibration Certificate: 1

Power cord: 1

Optional accessories

30 A Test Lead
