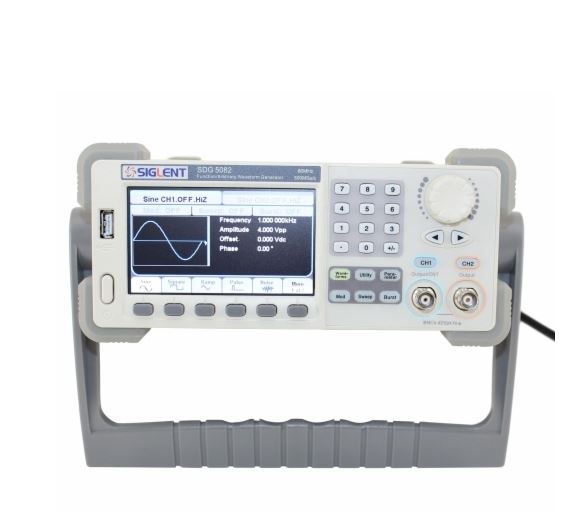

SIGLENT SDG5082 Waveform Generator
ManufacturerSIGLENT(View more products from this manufacturer)
ModelSDG5082
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Maximum output frequency- - -80MHz
Output channels-2
Sampling rate-500MSa/s
Wave length-CH1:16Kpts,CH2:512Kpts
Frequency resolution-1μHz
Vertical resolution-14bit
Waveform -Sine, Square, Ramp, Pulse, Gaussian white noise, Arb
Modulation function-AM,DSB-AM, FM, PM, FSK, ASK,PWM, Sweep, Burst
Amplitude-CH1/CH2≤40MHz: 1mVpp~10Vpp(50Ω), 2mVpp~20Vpp(high impedance)
40MHz~100MHz: 1mVpp~5Vpp(50Ω), 2mVpp~10Vpp(high impedance)
100MHz~130MHz: 1mVpp~2.5Vpp(50Ω),2mVpp~5Vpp(high impedance)
130MHz~160MHz: 1mVpp~1.5Vpp(50Ω),2mVpp~3Vpp(high impedance)
Frequency counter-Frequency range: 100 mHz ~ 200 MHz
Interface-USB Host, USB Device
Optional interface-LAN,GPIB(IEEE-488)
Dimension-261mm*104.85mm*343.8mm
Detailed performance parameters and technical indicators please refer to 《SDG5000 serial Datasheet》
•Standard Accessories:
1. A User Manual
2. A Certification
3. A Guaranty Card
4. A CD (including EasyWave1.0 computer software system)
5. A Power Cord that fits the standard of destination country
6. A USB Cable
7. A Quick Start
Optional Accessories:
1. BNC Cable
2. GPIB (IEEE 488.2)
