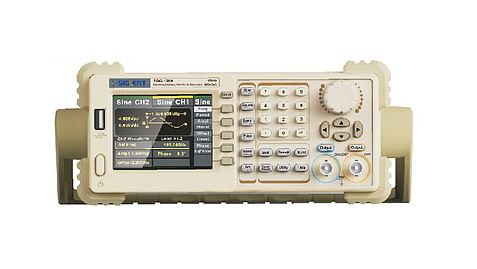

Model |
SDG1020 |
||||
|
Maximum output frequency |
20MHz |
||||
|
Output channels |
2 |
||||
|
Sampling rate |
125 MSa/s |
||||
|
Wave length |
16 kpts |
||||
|
Frequency resolution |
1 μHz |
||||
|
Vertical resolution |
14 bits |
||||
|
Waveform |
Sine, Square, Ramp, Pulse, Gaussian white noise, 48 types of built-in arbitrary waveforms |
||||
|
Sine wave |
1μHz ~20MHz |
||||
|
Square wave |
1μHz ~20MHz |
||||
|
Pulse |
500μHz ~5MHz |
||||
|
Ramp |
1μHz ~ 300KHz |
||||
|
Gaussian white noise |
20MHz |
||||
|
Arbitrary wave |
1μHz ~5MHz |
||||
|
Modulation function |
AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst |
||||
|
Other functions |
Frequency counter: 100 mHz ~ 200 MHz |
||||
|
Standard configuration |
USB Host & Device |
||||
|
Optional port |
USB-GPIB adapter |
||||
|
Size |
229mm×105mm×281mm |
||||
|
Detailed performance parameters and technical indicators please refer to 《SDG1000 serial Datasheet》 |
|||||
Standard Accessories:
1. A User Manual
2. A Certification
3. A Guaranty Card
4. A CD (including EasyWave 1.0 computer software system)
5. A Power Cord that fits the standard of destination country
6. A USB Cable
7. A Quick Start
Optional Accessories:
1. BNC Cable
2. GPIB (IEEE 488.2)
|
