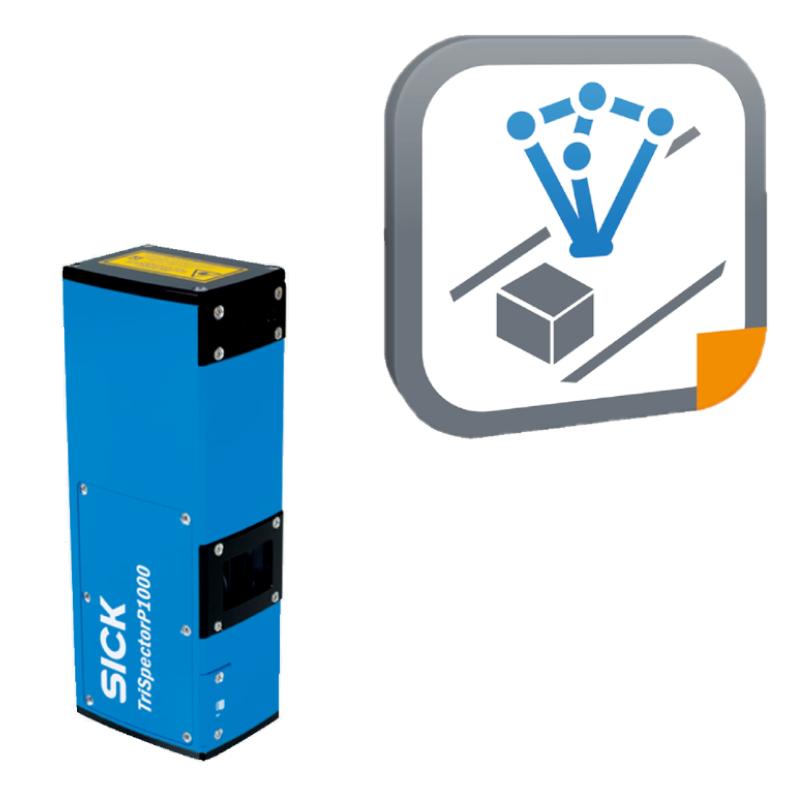

SICK V3T12P-MR32A7S50 TriSpectorP1000 - 3D Machine (141 mm~541 mm; 270 mm x 100 mm)

Technology: 3D triangulation

Toolkit: Shape detection, fixed plane, area detection

Working Distance: 141 mm ... 541 mm

Field of View (FOV): 270 mm x 100 mm

Illumination: Integrated

Illumination Color: Red, laser, Visible, 660 nm, ± 7 nm

Laser Class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)

Width at Minimum Operating Distance: 90 mm

Width at Maximum Operating Distance: 330 mm

Max Height Range: 400 mm

Image Angle: 65°

Offline Support: Emulation

Connection Type: M12, 12-pin male connector, A-coded (power supply, I/O). M12, 8-pin female connector, X-coded (Gigabit Ethernet). M12, 8-pin female connector, A-coded (encoder)

Supply Voltage: 24V DC, ± 20%

Power Consumption: 11 W

Current Consumption: < 400 mA, no output load

Enclosure Rating: IP67

Weight: 1.3 kg

Dimensions (L x W x H): 217 mm x 62 mm x 84 mm
