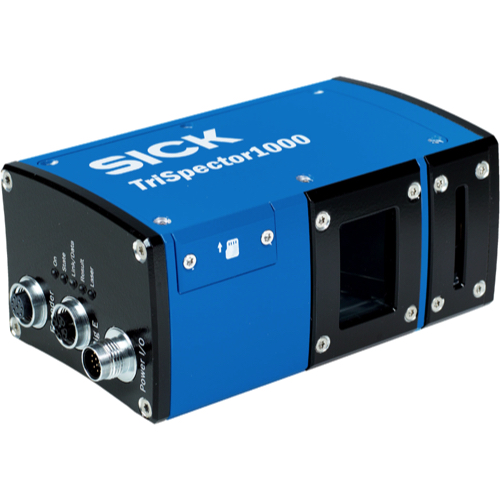

SICK V3T11S-MR12A7 TriSpectorP1000 - 3D Machine (56 mm ... 116 mm; 65 mm x 15 mm)

Technology: 3D triangulation

Toolkit: Shape definition, fixed plane, area detection

Working distance: 56 mm ... 116 mm

Field of view (sample): 65 mm x 15 mm

Illumination: Integrated

Illumination color: Red, laser, Visible, 660 nm, ± 7 nm

Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.)

Width at minimum operating distance: 40 mm

Width at maximum operating distance: 75mm

Maximum height range: 60mm

Image angle: 65°

Offline support: Emulation

Connection type: M12, 12-pin male connector, A-coded (voltage supply, I/O). M12, 8-pin female connector, X-coded (Gigabit Ethernet). M12, 8-pin female connector, A-coded (encoder)

Supply voltage: 24V DC, ± 20%

Power consumption:  11 W

Current consumption: < 400 mA, without output load

Standard: IP67

Weight: 0.9kg

Dimensions (L x W x H): 136 mm x 62 mm x 84 mm
